| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
14 pcs
|
14 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

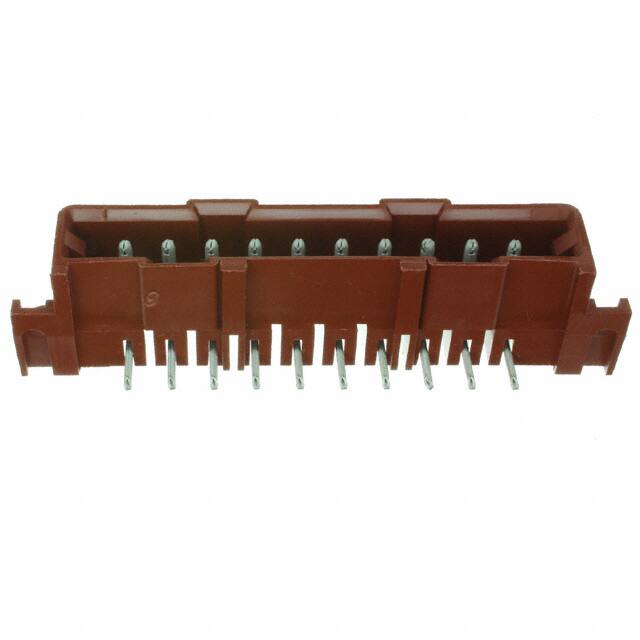

The TE Connectivity 207398-1 is a 10-position, single-row, right-angle header designed for board-to-board or cable interconnections. It features a shrouded 4-wall housing with a latch holder for secure mating, and a mounting flange for additional mechanical stability. The header uses male brass pins with a circular contact shape and a tin-lead finish with 150µin thickness.
Electrical specifications include a current rating of 7.5A and a voltage rating of 600V, with an operating temperature range of -55°C to 130°C. The insulation material is polyamide (nylon) with a flammability rating of UL94 V-0. The header is available in black and red insulation colors.
Mechanical design includes through-hole, right-angle mounting with a 5.00mm pitch. The insulation height is 12.70mm, and the contact length is 4.88mm. The header is loaded with all 10 positions in a single row. This connector is suitable for applications requiring a robust, shrouded header with a 5mm pitch.
10 positions.
5.00mm (0.197 inches).
7.5A.
600V.
Through hole, right angle.
-55°C to 130°C.
Tin-Lead with 150µin thickness.
