| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
400 pcs
|
400 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accepts Wire Insulation Diameter Range | |
| Brand | |
| Connector Type | |
| Contact Gender | |
| Contact Size | |
| Contact Termination | |
| Contact Type | |
| ELV | |
| Environmental Protection | |
| Failure Rate | |
| Fastening Type | |
| Housing Color | |
| Housing Material | |
| Material Flammability Rating | |
| Mating Alignment Type | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions | |
| Number of Signal Positions | |
| Orientation | |
| PCB Mount Retention | |
| Reverse Gender | |
| Reverse Numbering | |
| Sealed | |
| Shell Material | |
| Shell Size | |
| Shell Type | |
| Shielding | |
| Tape & Reel | |
| Thread Size | |
| Type | |
| VDE Tested |

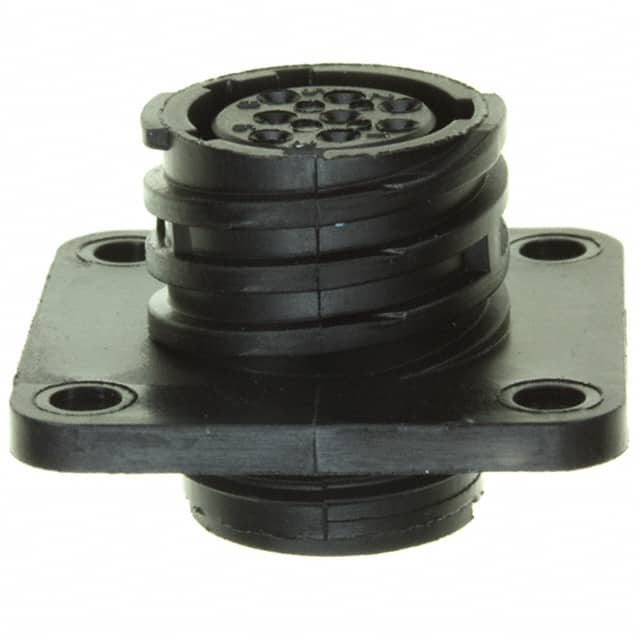

The TE Connectivity 206433-1 is a circular connector housing from the CPC (Circular Plastic Connector) Series 2. It is a receptacle housing with 8 positions, all signal, designed for use with female socket contacts. The housing is made of glass-filled polyamide (PA66/Nylon 6/6) in black color, with a UL94 V-0 flammability rating.
This housing features a panel mount with flange, using a threaded coupling (5/8-24 UNEF-2A) for mating. It is keyed for proper alignment and has a reverse gender arrangement. The contact termination is crimp, accepting wire insulation diameters up to 1.73 mm. The housing is unshielded and not sealed, with no fluid resistance.
Typical applications include commercial signal and power interconnection systems where a durable, plastic housing is required. The connector is RoHS and ELV compliant, making it suitable for use in environmentally sensitive designs. It is designed for use with mating plugs of the same series.
8 positions (all signal, no power positions).
Panel mount with flange.
Female socket contacts with crimp termination.
5/8-24 UNEF-2A.
Glass-filled polyamide (PA66/Nylon 6/6) with UL94 V-0 rating.
Yes, it is RoHS and ELV compliant.
CPC (Circular Plastic Connector) Series 2.
