| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
264 pcs
|
264 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
28 pcs
|
28 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Size | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Housing Color | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Orientation | |
| Shell Material | |
| Shell Size | |
| Shielding | |
| Tape & Reel | |
| Type |

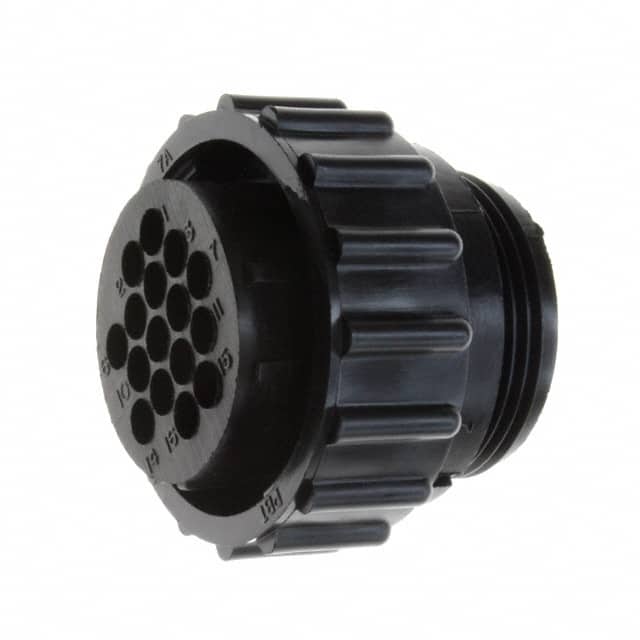

The TE Connectivity 206037-1 is a circular connector plug housing designed for use with female socket contacts. It accommodates 16 positions with contact size 16 and uses crimp termination. The housing features a threaded coupling mechanism for secure mating and is designed for free hanging (in-line) mounting, making it suitable for applications where panel mounting is not required.
The shell is made of polyamide (PA66) nylon 6/6 glass-filled material, providing good mechanical strength and thermal resistance. The housing is black in color and unshielded, intended for general-purpose signal or power connections. It carries a UL94 V-0 flammability rating, indicating self-extinguishing properties.
This housing is part of the CPC (Circular Plastic Connector) series from TE Connectivity, known for robust and reliable interconnects in industrial, automotive, and commercial environments. The coupling nut feature simplifies mating and unmating. The shell size is 17-16, and the orientation is A.
16 positions.
Free Hanging (In-Line).
17-16.
Polyamide (PA66), Nylon 6/6, Glass Filled.
UL94 V-0.
No, it is unshielded.
Crimp contacts, size 16.
