Mfr Part #:

206-1PABHE

Name: 206-1PABHE
Brand: Wakefield-Vette
SKU: 206-1PABHE

Mfr Name: Wakefield-Vette

Description:

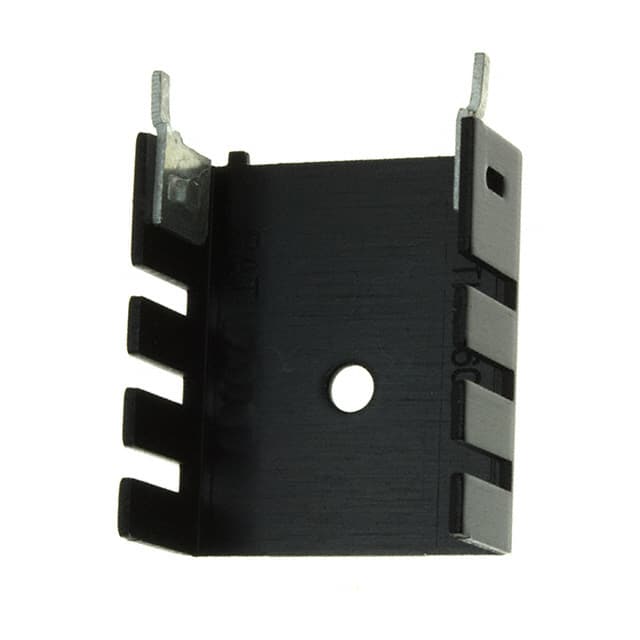

HEATSINK VERT ALUM BLK TO-220

Stock on Request

206-1PABHE Description

Short technical summary and product information.

HEATSINK VERT ALUM BLK TO-220

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Heat Sinks
Manufacturer Name	Wakefield-Vette
Attachment Method	Bolt On and PC Pin
Fin Height	0.500" (12.70mm)
Length	1.180" (29.97mm)
Material	Aluminum
Material Finish	Black Anodized
Package Cooled	TO-220
Power Dissipation @ Temperature Rise	4.0W @ 56°C
Shape	Rectangular, Fins
Thermal Resistance @ Forced Air Flow	7.30°C/W @ 200 LFM
Thermal Resistance @ Natural	14.00°C/W
Type	Board Level, Vertical
Width	1.000" (25.40mm)
