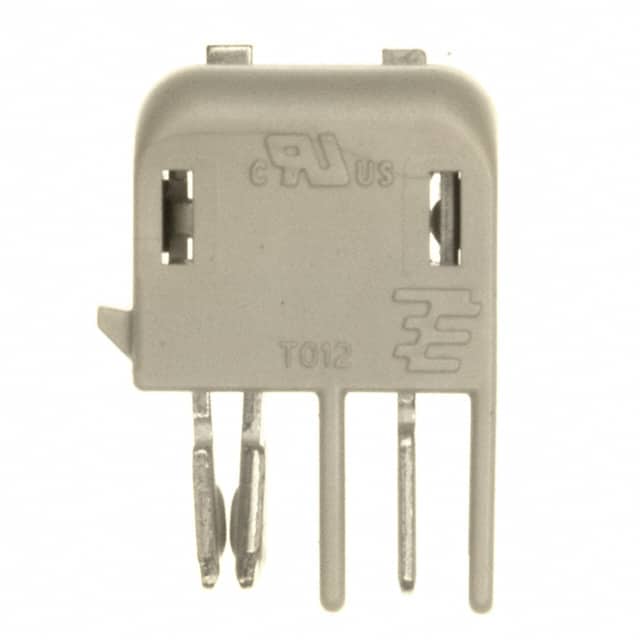

2058703-1 TE Connectivity 2058703-1 is a 2-position, 4mm pitch solid state lighting connector assembly with a hermaphroditic blade and receptacle design for board-to-board applications.
Mfr Part #:

2058703-1

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 2058703-1 is a 2-position, 4mm pitch solid state lighting connector assembly with a hermaphroditic blade and receptacle design for board-to-board applications.
✓ Total Stock: 116 pcs

2058703-1 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
116 pcs
On Request
116 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

2058703-1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Material
Fastening Type
Housing Color
Housing Material
Lead Spacing
Lead Style
Mounting Type
Number of Positions
Operating Temperature
Pitch
SVHC Present
Style
Tape & Reel
Termination
Termination Style
View Similar Products (0)

2058703-1 Description

Short technical summary and product information.

The TE Connectivity 2058703-1 is a solid state lighting connector assembly designed for board-to-board interconnections in lighting systems. It features a hermaphroditic blade and receptacle contact design with 2 positions at a 4.00mm pitch.



The connector supports board edge, surface mount, and right-angle mounting styles with solder termination. The housing is made of natural Liquid Crystal Polymer (LCP) and features a locking ramp for secure mating. Contacts are made of copper alloy with a tin finish.



The operating temperature range is -40°C to 105°C, making it suitable for a variety of indoor and outdoor lighting environments. The hermaphroditic design simplifies inventory and mating logistics.

2058703-1 Quick Information

Product Type: Solid State Lighting Connector Assembly
Canonical Name: TE Connectivity 2058703-1 Solid State Lighting Connector Assembly, Blade and Receptacle, Hermaphroditic, 2 Position, 4mm Pitch
Subcategory: Board-to-Board Connector

2058703-1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant

2058703-1 Features

  • Hermaphroditic blade and receptacle connector design.
  • 2 positions with 4.00mm pitch spacing.
  • Board edge, surface mount, right-angle mounting.
  • LCP housing with locking ramp fastener.
  • Tin-plated copper alloy contacts.

2058703-1 Applications

  • Solid state lighting board-to-board connections.
  • LED module interconnects in lighting fixtures.
  • Low-profile lighting applications requiring SMT.

2058703-1 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the pitch of the TE Connectivity 2058703-1 connector?

The pitch is 4.00mm.

How many positions does the 2058703-1 have?

It has 2 positions.

What mounting types are supported by the 2058703-1?

It supports board edge, surface mount, and right-angle mounting.

What is the operating temperature range of the 2058703-1?

The operating temperature range is -40°C to 105°C.

What type of connector is the 2058703-1?

It is a hermaphroditic blade and receptacle connector used for board-to-board applications.
