| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,568 pcs
|
2568 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
67 pcs
|
67 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination | |
| Termination Style |

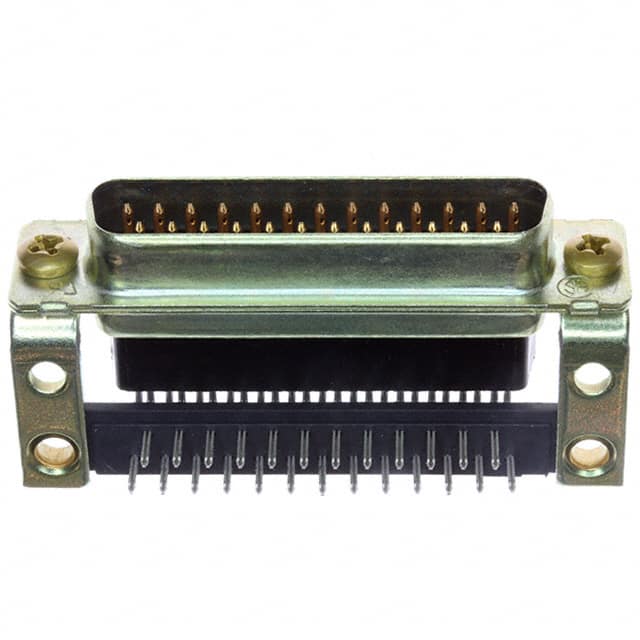

The TE Connectivity 205857-2 is a D-Sub connector assembly featuring a plug with male pins. It offers 25 positions arranged in 2 rows, making it suitable for standard DB-25 applications. The connector uses a through hole, right angle mounting style with solder termination for reliable PCB attachment.
Electrical performance includes a current rating of 6A per contact. The contacts are signal type with gold finish (30.0µin thickness) for corrosion resistance and reliable low-level signal connections. The shell is steel with yellow chromate plated zinc finish, providing durability and EMI shielding.
Mechanical features include a backset spacing of 0.545" (13.84mm), flange feature with mating side standard screws (4-40), and mounting brackets for secure attachment. The insulator material has a UL94 V-0 flammability rating. Shell size is 3 (DB, B) layout.
Plug, Male Pins, D-Sub style.
25 positions arranged in 2 rows.
Through Hole, Right Angle with solder termination.
6A per contact.
Gold with 30.0µin (0.76µm) thickness.
Steel, Yellow Chromate Plated Zinc.
UL94 V-0.
