| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
12,842 pcs
|
12842 pcs | On Request | 1 | On Request | On Request | 1706+ | On Request | On Request | |
|
3,000 pcs
|
3000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Center Contact Material | |
| Characteristic Impedance | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Frequency | |
| Housing Color | |
| Lead Style | |
| Mated Height | |
| Mounting Type | |
| Number of Ports | |
| Rece. SMT Size | |
| Shield Termination | |
| Tape & Reel | |
| Termination Style | |
| VSWR (2.5 ~ 6 GHz) | |
| VSWR (6 ~ 11 GHz) | |
| VSWR (DC ~ 2.5 GHz) |

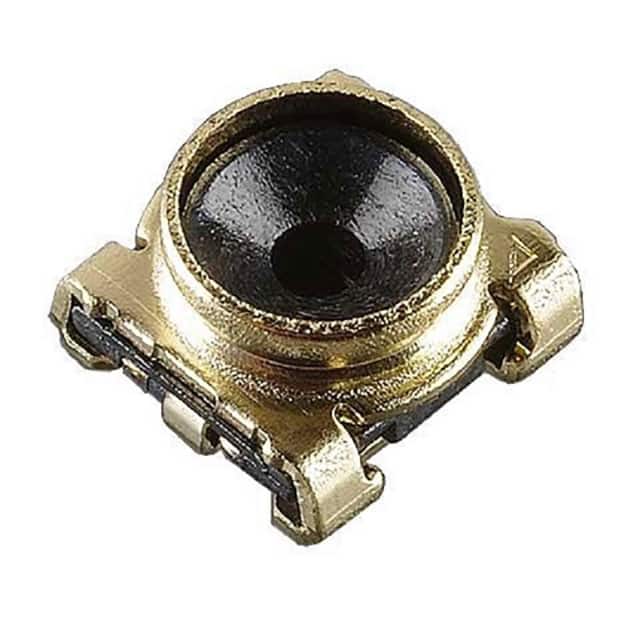

The I-PEX 20549-001E is an MHF-SW23 series RF switch coaxial connector designed for RF modules with on-board antennas. It features a compact 2.3 x 2.3 mm receptacle SMT footprint and a low mated height of 1.35 mm, making it suitable for space-constrained wireless designs.
This connector supports DC to 11 GHz frequency range with a characteristic impedance of 50 ohm. VSWR is specified as 1.2 max from DC to 2.5 GHz, 1.3 max from 2.5 to 6 GHz, and 1.5 max from 6 to 11 GHz. The snap-on fastening type ensures secure mating.
The housing is gold-plated with a phosphor bronze center contact. Termination is solder for both contact and shield. The connector is RoHS3 compliant and REACH unaffected, with an MSL rating of 1 (unlimited).
The connector supports DC to 11 GHz.
The characteristic impedance is 50 ohm.
The mated height is 1.35 mm maximum.
It is a surface mount connector with solder termination.
VSWR is 1.2 max from DC to 2.5 GHz, 1.3 max from 2.5 to 6 GHz, and 1.5 max from 6 to 11 GHz.
