| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
88 pcs
|
88 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

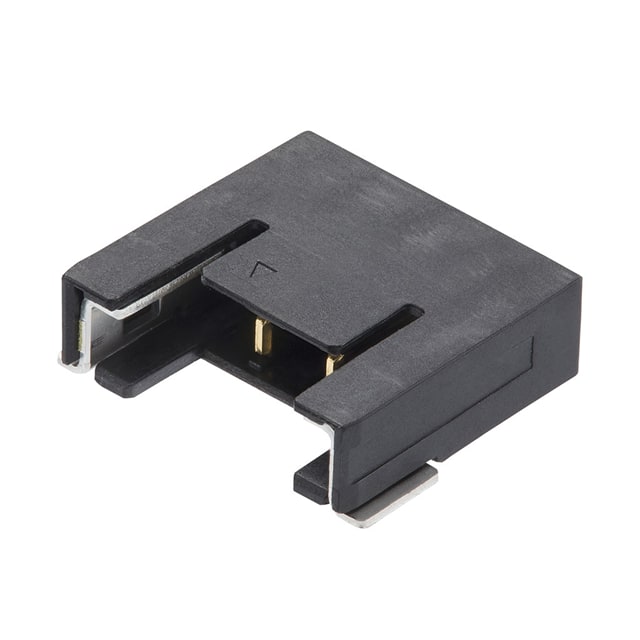

The Molex 2053380004 is a Pico-Lock 2.00mm pitch header assembly designed for reliable board-to-cable/wire connections. This 4-position, single-row connector features a shrouded 4-wall design with a detent lock fastening system for secure mating. The header is surface mount with a right-angle orientation, making it suitable for space-constrained PCB layouts.
Electrical ratings include a current capacity of 6.5A per contact and a voltage rating of 250V. The operating temperature range spans -40°C to 105°C, accommodating a wide variety of environments. The insulator is molded from black polyamide (nylon) with a UL94 V-0 flammability rating, ensuring fire safety compliance.
Contacts are made of copper alloy with a gold finish (3.94µm thickness) for excellent conductivity and corrosion resistance. The header includes a solder retention feature to improve mechanical stability during assembly. Termination is via solder, and the component is rated MSL Level 1 (unlimited) for moisture sensitivity.
The pitch is 2.00mm.
It has 4 positions in a single row.
The current rating is 6.5A per contact.
The voltage rating is 250V.
It is surface mount with a right-angle orientation.
The operating temperature range is -40°C to 105°C.
It is listed as RoHS3 Compliant (unverified).
