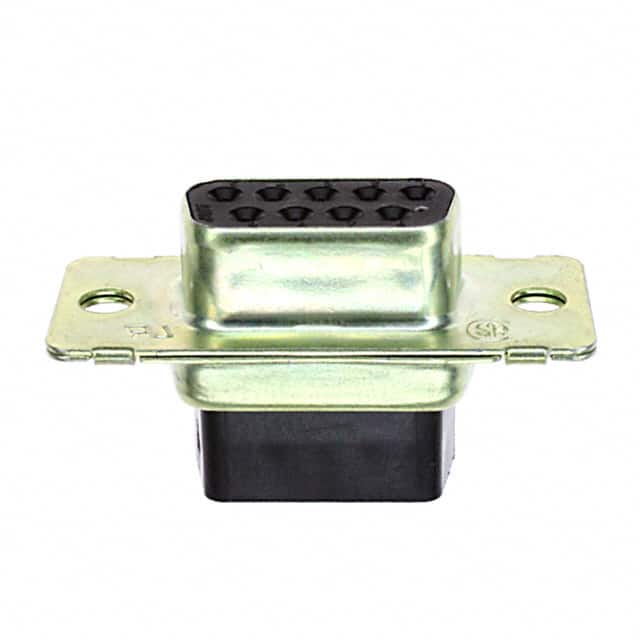

205203-8 This TE Connectivity 205203-8 is a D-Sub receptacle housing for female contacts. It features 9 positions in 2 rows, a free hanging in-line mounting style, and a steel shell with yellow trivalent chromium chromate zinc plating.
Mfr Part #:

205203-8

Available from 3 distributors
Mfr Name: TE Connectivity
TE Connectivity
This TE Connectivity 205203-8 is a D-Sub receptacle housing for female contacts. It features 9 positions in 2 rows, a free hanging in-line mounting style, and a steel shell with yellow trivalent chromium chromate zinc plating.
✓ Total Stock: 806 pcs

205203-8 Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
800 pcs
On Request
800 pcs On Request 1 On Request On Request On Request On Request On Request
Speed Components Ltd ✓
Non-Authorised Inventory information
5 pcs
On Request
5 pcs On Request 1 On Request On Request 07+ On Request On Request
ADI/AAR OEM Supply ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

205203-8 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Style
Connector Type
Contact Type
Flange Feature
Mounting Type
Number of Positions
Number of Rows
Shell Finish Thickness
Shell Material, Finish
Shell Size, Connector Layout
View Similar Products (0)

205203-8 Description

Short technical summary and product information.

The TE Connectivity 205203-8 is a D-Sub receptacle housing designed for use with female contacts. It has a 9 position layout arranged in 2 rows, conforming to the DE-9 (E) shell size. The housing features a free hanging in-line mounting style, making it suitable for cable-to-cable or cable-to-panel applications where a panel cutout is not required. The shell is constructed from steel and finished with yellow trivalent chromium chromate zinc plating, providing a durable and corrosion-resistant exterior. The connector uses an unthreaded housing/shell flange feature for mating. This housing is part of the D-Sub, D-Shaped Connector Housing category and is designed for signal contact type applications.

205203-8 Quick Information

Product Type: D-Sub Connector Housing
Series: AMPLIMITE HDP-20
Canonical Name: TE Connectivity 205203-8 D-Sub Receptacle Housing, 9 Position, DE-9 Shell, Free Hanging
Subcategory: D-Sub, D-Shaped Connector Housings

205203-8 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

205203-8 Features

  • 2-row 9 position D-Sub receptacle housing.
  • Free hanging in-line mounting style.
  • Steel shell with yellow trivalent chromate finish.
  • Shell size 1 (DE, E) connector layout.
  • Unthreaded housing shell flange feature.

205203-8 Applications

  • Used in cable-to-cable signal connections.
  • Suitable for cable-to-panel D-Sub assemblies.
  • Common in industrial control and data communication.
  • Ideal for custom harness and cable assemblies.

205203-8 FAQs

5 frequently asked questions generated from this part’s specifications.
What type of connector is the 205203-8?

It is a D-Sub receptacle housing for female contacts.

How many positions does the 205203-8 have?

It has 9 positions arranged in 2 rows.

What is the mounting type of this connector?

The mounting type is free hanging (in-line).

What shell size and layout does the 205203-8 use?

It uses shell size 1 with a DE (E) connector layout.

What is the shell material and finish?

The shell is steel with yellow trivalent chromium chromate zinc plating and a finish thickness of 200 microinches.
