| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Flange Feature | |
| Insulator Material | |
| Military Grade | |
| Military Standard | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Polarization | |
| SVHC Present | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination |

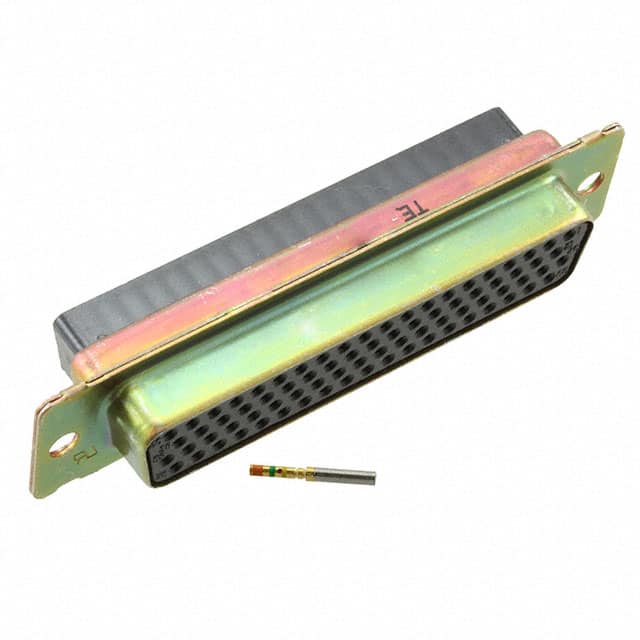

The TE Connectivity 204520-2 is a 78-position high-density D-Sub receptacle designed for reliable signal connections in demanding environments. This connector features a steel shell with cadmium plating, providing robust mechanical protection. The insulator is made from a one-piece thermoplastic insert, and the contacts are gold-plated for reliable low-level signal performance.
The receptacle uses a keystone polarization design to ensure correct mating alignment. It is designed in accordance with MIL-C-24308 military standard. Termination is via crimp contacts, allowing for flexible wire attachment. The mounting type is panel mount with an unthreaded housing/shell flange feature.
With a current rating of 7.5 amperes per contact, this connector is suitable for signal and moderate power applications. The high-density contact arrangement (4 rows) offers a significant space saving over standard D-Sub layouts.
The 204520-2 has 78 positions in a high-density layout.
7.5 amperes per contact.
Panel mount with an unthreaded housing/shell flange.
It is a receptacle with female socket contacts.
Crimp termination.
