| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
15 pcs
|
15 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
12 pcs
|
12 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Layout, Typical | |
| Contact Material | |
| Contact Resistance | |
| Current Rating (Per Contact) | |
| Durability | |
| Features | |
| Flammability Rating | |
| Housing Material | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature Range | |
| Retention Force | |
| Termination | |
| Termination Style | |
| Voltage Rating |

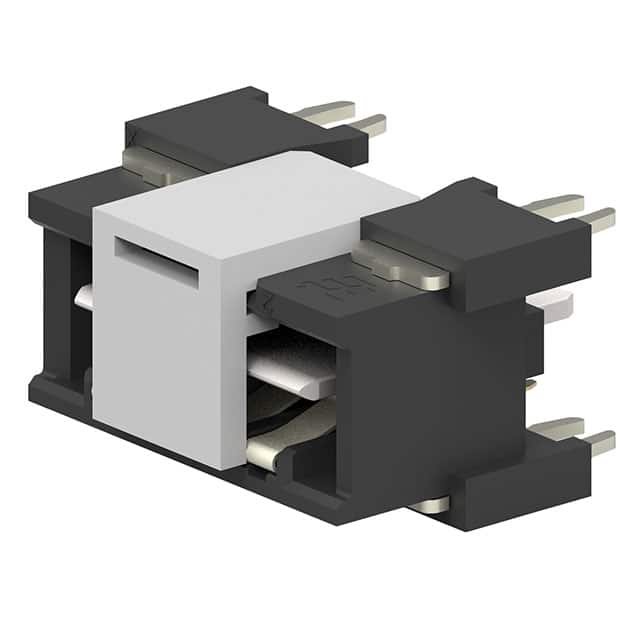

The TE Connectivity 2042274-1 is an ELCON Mini power header designed for high-density power distribution in space-constrained applications. This 2-position connector features male blade contacts with silver plating on a copper alloy base, providing a reliable low-resistance interface with a maximum contact resistance of 0.3 milliohms.
Electrical ratings include 40A per contact and 400V AC or DC, making it suitable for power supply, server, and industrial equipment designs. The connector supports up to 50 mating cycles and features a positive metal latch retention system capable of withstanding pull forces up to 100N.
The housing is molded from LCP glass-filled material (UL 94V-0) in black color. Mounting is through hole with solder termination, and a board lock feature secures the connector during assembly. Operating temperature range is -40°C to 130°C.
40 A per contact.
400 V AC or DC.
Through hole with solder termination.
2 positions in a single row, all positions loaded.
-40°C to 130°C.
Copper alloy with silver plating, 3.00 µm thickness.
