| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
600 pcs
|
600 pcs | On Request | 1 | On Request | On Request | 1970-01-01 00:28:31 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Material | |
| Contact Plating | |
| Insulation Material | |
| Lead Style | |
| Mating Cycles | |
| Mixed Gas Test | |
| Mounting Type | |
| Number of Columns | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Performance Level | |
| Termination |

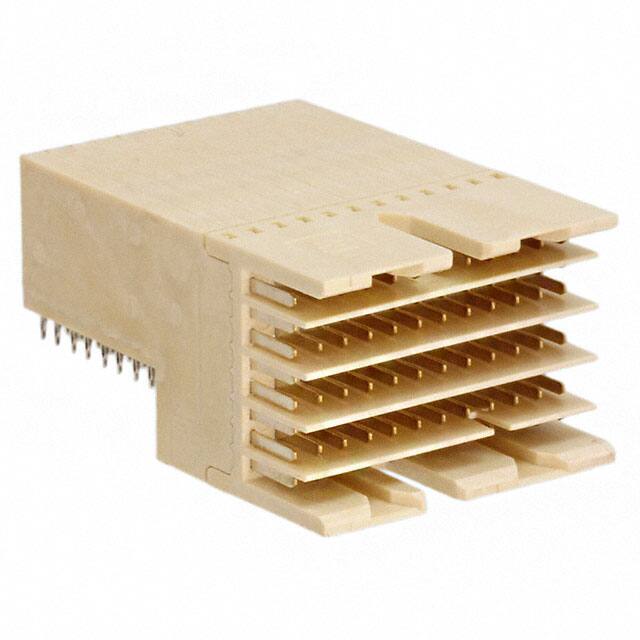

The TE Connectivity 2042162-2 is a 96-position right angle male header connector designed for backplane applications. It features 8 rows and 12 columns with all positions loaded, using a press-fit termination for reliable board-to-board connections. The connector is part of the Z-Pack Slim UHD High Speed series and is rated for 250 mating cycles.
The housing is made of LCP 30% GF Natural material, and the contacts are copper alloy with a tin over nickel plating (0.5µm minimum). The connector supports board edge, through hole, and right angle mounting. It is classified as Performance Level 2, conforming to product specification 108-19320, which includes testing per IEC 60068-2-60 Method 1 for mixed gas exposure (4 days).
This connector is suitable for high-speed signal transmission in dense backplane environments. The natural color housing and press-fit termination simplify assembly and reduce soldering requirements.
The connector has 96 positions arranged in 8 rows and 12 columns, with all positions loaded.
The termination type is press-fit.
The connector supports board edge, through hole, and right angle mounting.
The connector is rated for 250 mating cycles.
The contacts have tin over nickel plating with a minimum thickness of 0.5µm.
This is Performance Level 2, conforming to product specification 108-19320, which includes 250 mating cycles and 4 days mixed gas testing per IEC 60068-2-60 Method 1.
