| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,811 pcs
|
5811 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Current Rating (Amps) | |
| Gender | |
| Mating Cycles | |
| Mounting Feature | |
| Mounting Type | |
| Number of Contacts | |
| Number of Ports | |
| Operating Temperature | |
| Specifications | |
| Tape & Reel | |
| Termination | |
| Voltage |

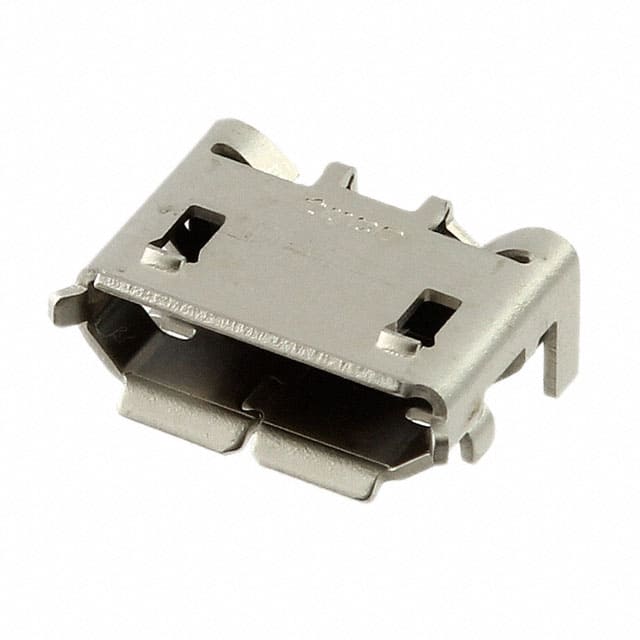

The TE Connectivity 2040002-1 is a USB 2.0 Micro B receptacle connector designed for reliable data and power connections. It features 5 contacts in a single port configuration, supporting USB 2.0 standard for data transfer rates up to 480 Mbps. The connector is rated for a voltage of 30V DC and can handle currents of 0.5A, 1A, or 1.8A depending on the application.
This right angle connector utilizes a hybrid mounting method combining surface mount (SMD) termination with through-hole retention for mechanical stability. It is designed for horizontal mounting and can withstand 10,000 mating cycles, ensuring long-term durability. The operating temperature range spans from -30°C to 85°C, making it suitable for a variety of environments.
Ideal for compact electronic devices, this connector is commonly used in consumer electronics, industrial equipment, and portable devices where space is limited. The solder termination provides a reliable electrical connection, and the right angle orientation allows for low-profile designs. No additional shielding is specified in the available data, so designers should consider electromagnetic compatibility requirements separately.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.74 | $2.74 |
| 10+ | $2.44 | $2.44 |
| 25+ | $2.18 | $2.18 |
| 100+ | $2.07 | $2.07 |
| 250+ | $1.94 | $1.94 |
| 500+ | $1.85 | $1.85 |
| 1,000+ | $1.73 | $1.73 |
| 2,000+ | $1.67 | $1.67 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This USB Micro B receptacle has 5 contacts.
The voltage rating is 30V DC.
The current rating is 0.5A, 1A, or 1.8A depending on the contact configuration.
The connector features surface mount, right angle; through hole mounting.
The operating temperature range is -30°C to 85°C.
It is rated for 10,000 mating cycles.
