| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,500 pcs
|
4500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Level | |
| Actuator Type | |
| Circuit | |
| Contact Finish | |
| Current Rating (Amps) | |
| Features | |
| Height Above Board | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Termination Style | |
| Voltage Rating | |
| Washable |

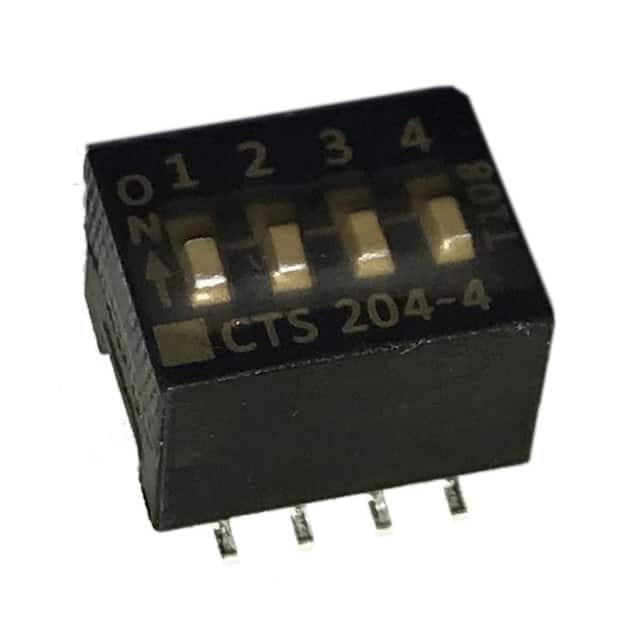

The CTS Electrocomponents 204-4ST is a 4-position, single-pole, single-throw (SPST) DIP switch. It features a slide actuator and is designed for surface mounting with gull wing termination. This switch operates at a voltage rating of 24VDC and a current rating of 50mA, with a gold contact finish.
With an operating temperature range of -55°C to 85°C, the 204-4ST is suitable for various environmental conditions. Its features include epoxy sealed terminals and tape seal for added protection. The switch has a pitch of 2.54mm and a height above the board of 10.00mm. It is washable and rated MSL 1.
This DIP switch is ideal for applications requiring reliable and compact switching solutions. Its surface mount design facilitates automated assembly processes, while the sealed terminals offer protection against contaminants during soldering and operation.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage for the 204-4ST DIP switch is 24VDC.
The current rating of the 204-4ST DIP switch is 50mA.
The 204-4ST DIP switch operates in a temperature range of -55°C to 85°C.
The 204-4ST DIP switch uses surface mount mounting.
