| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
899 pcs
|
899 pcs | On Request | 1 | On Request | On Request | 23+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Halogen Free | |
| Operating Temperature | |
| Peak Forward Current | |
| Power Dissipation | |
| Reverse Current | |
| Reverse Voltage | |
| Storage Temperature | |
| Viewing Angle |

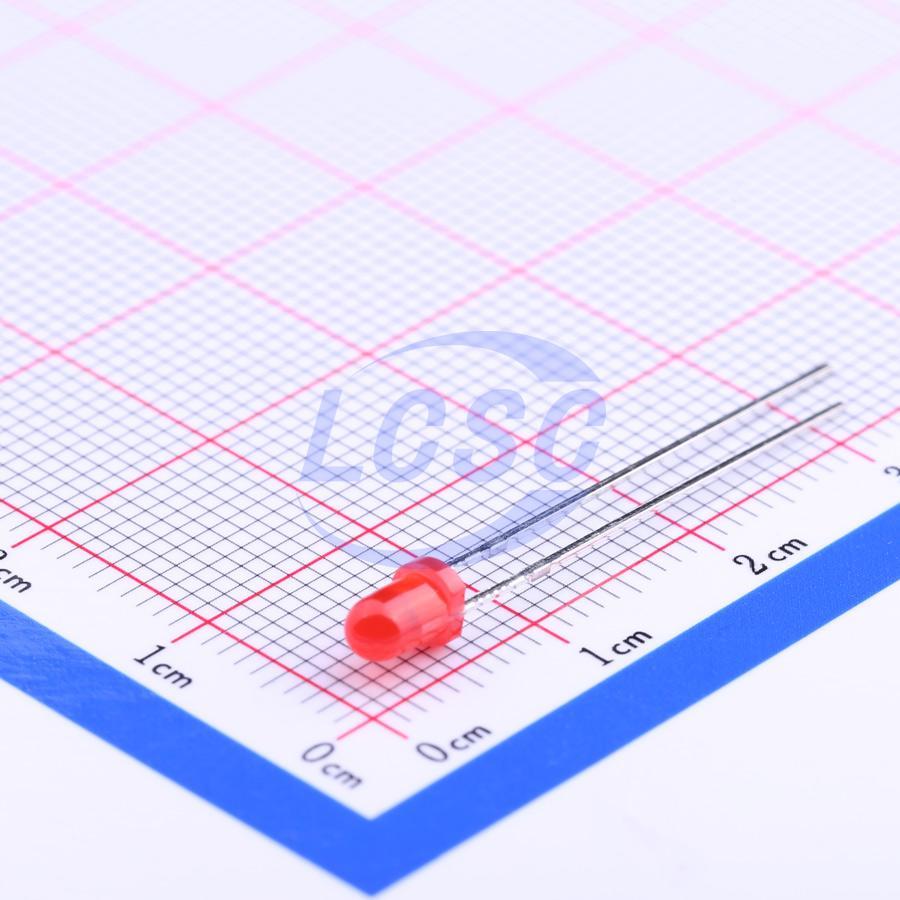

The Everlight Electronics 204-10SURD/S530-A3-L is a brilliant red LED lamp designed for applications requiring higher brightness, such as TV sets, monitors, telephones, and computers. It features AlGaInP chip materials and a red diffused resin color.
Key electrical specifications include a typical forward voltage of 2.0V at 20mA, a maximum continuous forward current of 25mA, and a peak forward current of 60mA. The luminous intensity is typically 80 mcd with a viewing angle of 40 degrees. The dominant wavelength is 624 nm, and the peak wavelength is 632 nm.
This LED lamp operates within a temperature range of -40°C to +85°C and has a storage temperature range of -40°C to +100°C. It is available on tape and reel, making it suitable for automated assembly processes. The product is Pb-free and Halogen Free compliant, with compliance to EU REACH.
Absolute maximum ratings include a reverse voltage of 5V and a power dissipation of 60mW. Soldering temperature is rated at 260°C for 5 seconds.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical luminous intensity is 80 mcd when operated at 20mA.
The viewing angle is typically 40 degrees at 20mA.
The typical forward voltage is 2.0V at 20mA.
The operating temperature range is -40°C to +85°C.
Yes, the product is Pb free and the product itself will remain within RoHS compliant version.
Yes, the product is Halogen Free compliant.
