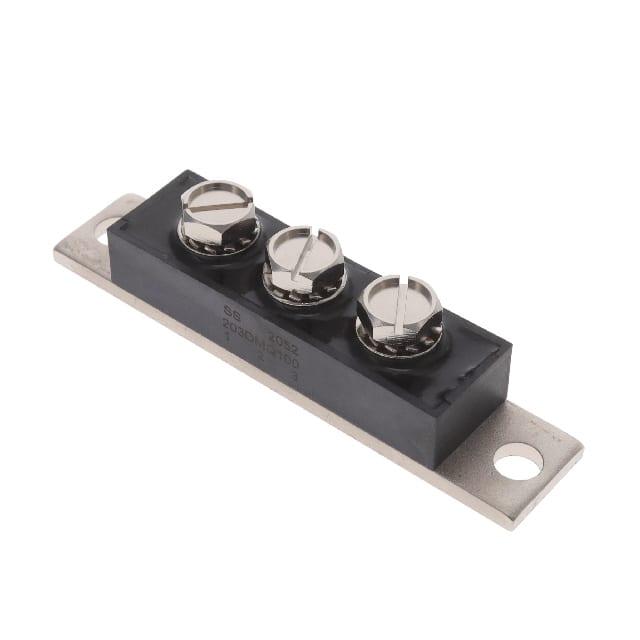

203DMQ100 203DMQ100 is a 100V, 200A Schottky rectifier module in a PRM4 isolated package. It features a 1 pair series connection, low forward voltage drop, and high surge capability.
Mfr Part #:

203DMQ100

Available from 1 distributors
Mfr Name: SMC Diode Solutions
SMC Diode Solutions
203DMQ100 is a 100V, 200A Schottky rectifier module in a PRM4 isolated package. It features a 1 pair series connection, low forward voltage drop, and high surge capability.
✓ Total Stock: 3,600 pcs

203DMQ100 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
3,600 pcs
On Request
3600 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

203DMQ100 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Diode Configuration
Medical Grade
Mounting Type
Operating Temperature
Operating Temperature Range
Package / Case
Reverse Current
Speed
Supplier Device Package
Technology
Voltage
Weight
View Similar Products (0)

203DMQ100 Description

Short technical summary and product information.

The 203DMQ100 is a high-current Schottky rectifier module designed for demanding power conversion and industrial applications. It integrates two 100A Schottky diodes in a series (center-tap) configuration, delivering a total average forward current of 200A per device. The peak repetitive reverse voltage rating is 100V.



Key electrical parameters include a low typical forward voltage drop of 0.86V at 100A and 25°C and a maximum reverse current of 3mA at 100V and 25°C. The device is capable of handling high surge currents, with a non-repetitive surge current rating of 2520A per leg. Junction capacitance is typically 2670pF, and the operating junction temperature range spans -55°C to +175°C.



The 203DMQ100 is housed in a PRM4 isolated baseplate module designed for chassis mount installation. The module's thermal performance is supported with a junction-to-case thermal resistance of 0.30 °C/W per leg and 0.15 °C/W per package. This module is ideal for use in high-frequency switching power supplies, plating power supplies, free-wheeling diodes, UPS systems, and welding equipment.

203DMQ100 Quick Information

Product Type: Schottky Rectifier Module
Series: 203DMQ
Canonical Name: 203DMQ100 Schottky Rectifier Module
Subcategory: Rectifier Diode Array

203DMQ100 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant
Lead Free: Yes

203DMQ100 Features

  • 200A total average rectified forward current.
  • 100V peak repetitive reverse voltage rating.
  • Low forward voltage drop of 0.86V typical.
  • High surge current rating of 2520A per leg.
  • 175°C maximum operating junction temperature.

203DMQ100 Applications

  • High current switching power supplies.
  • Plating power supply applications.
  • Free-wheeling diode circuits.
  • UPS and welding systems.
  • Reverse battery protection circuitry.

203DMQ100 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the maximum forward voltage drop of the 203DMQ100?

The typical forward voltage drop is 0.86V at 100A and 25°C. The maximum forward voltage drop is 1.03V per the datasheet.

What is the maximum reverse voltage rating of the 203DMQ100?

The peak repetitive reverse voltage (VRRM) is 100V.

What is the average forward current rating of the 203DMQ100?

The average rectified forward current is 100A per leg, or 200A total per device.

What is the package type of the 203DMQ100?

The 203DMQ100 is housed in a PRM4 isolated module, designed for chassis mount.

What is the operating temperature range of the 203DMQ100?

The operating junction temperature range is -55°C to +175°C.
