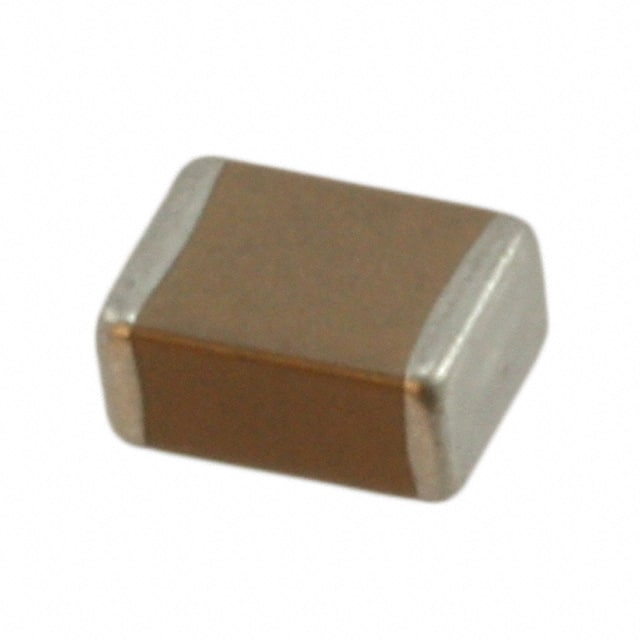

202S43W472KV4E CAP CER 4700PF 2KV X7R 1812. Surface mount MLCC capacitor from Johanson Dielectrics Inc.
Mfr Part #:

202S43W472KV4E

Available from 2 distributors
Mfr Name: Johanson Dielectrics
Johanson Dielectrics
CAP CER 4700PF 2KV X7R 1812. Surface mount MLCC capacitor from Johanson Dielectrics Inc.
✓ Total Stock: 8,015 pcs

202S43W472KV4E Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Husky International Electronic ✓
Non-Authorised Inventory information
8,000 pcs
On Request
8000 pcs On Request 1 On Request On Request N/A On Request On Request
Partservice ✓
Non-Authorised Inventory information
15 pcs
On Request
15 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

202S43W472KV4E Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Applications
Automotive Grade
Capacitance
Features
Industrial Grade
Lead Style
Length
Medical Grade
Military Grade
Mounting Type
Operating Temperature
Package / Case
Storage Temperature
Tape & Reel
Temperature Coefficient
Thickness (Max)
Tolerance
Voltage
Voltage - Rated
Width
View Similar Products (0)

202S43W472KV4E Description

Short technical summary and product information.

The 202S43W472KV4E is a surface mount multilayer ceramic capacitor (MLCC) manufactured by Johanson Dielectrics Inc. It offers a capacitance of 4700 pF with a rated voltage of 2000V (2kV) and a tolerance of ±10%. The capacitor features X7R temperature coefficient, ensuring stable performance over -55°C to 125°C operating temperature range. This high voltage MLCC is designed for general purpose applications where high voltage capability is required. The component is housed in an 1812 (4532 Metric) package with dimensions of 4.57mm length, 3.18mm width, and 2.80mm maximum thickness. It is suitable for surface mount assembly and is RoHS3 compliant (unverified). The part is commonly used in power supplies, industrial equipment, and other high voltage circuits.

202S43W472KV4E Quick Information

Product Type: MLCC Capacitor
Canonical Name: 4700pF 2kV X7R Ceramic Capacitor 1812
Subcategory: High Voltage MLCC

202S43W472KV4E Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

202S43W472KV4E Features

  • 4700pF capacitance with ±10% tolerance.
  • Rated for 2000V DC operation.
  • X7R temperature coefficient for stable performance.
  • Surface mount 1812 package.
  • Operating temperature range -55°C to 125°C.

202S43W472KV4E Applications

  • Used in high voltage power supply circuits.
  • Suitable for DC-DC converter applications.
  • Ideal for snubber and filtering circuits.
  • General purpose high voltage decoupling.

202S43W472KV4E FAQs

7 frequently asked questions generated from this part’s specifications.
What is the capacitance value of the 202S43W472KV4E?

4700 pF.

What is the rated voltage of this capacitor?

2000V (2kV).

What is the temperature coefficient of the 202S43W472KV4E?

X7R.

What is the capacitance tolerance?

±10%.

What is the package size of this MLCC?

1812 (4532 Metric).

What is the operating temperature range?

-55°C to 125°C.

What special features does this capacitor have?

High voltage.
