| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
49 pcs
|
49 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Features | |
| Large Diameter Recovered | |
| Large Diameter Supplied | |
| Large Recovered Length | |
| Material | |
| Shell Size | |
| Small Diameter Recovered | |
| Small Diameter Supplied | |
| Small Recovered Length | |
| Total Length Recovered | |
| Type |

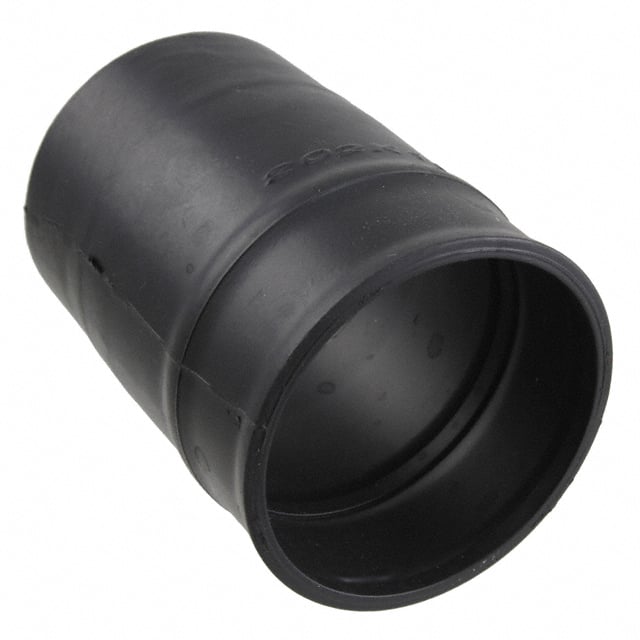

The TE Connectivity 202K153-3-0 is a heat shrink boot designed for size 53 shells. It is made from black polyolefin (PO) semi-rigid material, providing durability and flexibility for cable management applications. The boot features a lip for secure fit and is flame retardant, enhancing safety in demanding environments.
Supplied with a diameter of 1.420 inches (36.07mm) for both large and small ends, the boot recovers to a large diameter of 0.882 inches (22.40mm) and a small diameter of 0.331 inches (8.41mm). The total recovered length is 3.150 inches (80.01mm), with a large recovered length of 1.654 inches (42.01mm) and a small recovered length of 1.180 inches (29.97mm). These dimensions make it suitable for providing strain relief and environmental sealing at cable entry points.
The boot is RoHS3 compliant, REACH unaffected, and has an MSL of 1 (unlimited). It is commonly used in wire harness assemblies, connector backshells, and other applications requiring reliable cable protection and sealing.
| Qty | Low | High |
|---|---|---|
| 1+ | $25.47 | $25.47 |
| 10+ | $22.31 | $22.31 |
| 25+ | $21.35 | $21.35 |
| 50+ | $20.66 | $20.66 |
| 100+ | $19.97 | $19.97 |
| 250+ | $18.87 | $18.87 |
| 500+ | $18.32 | $18.32 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
RoHS3 Compliant.
Polyolefin (PO), Semi-Rigid.
Black.
Supplied diameter: 1.420" (36.07mm) for both large and small ends. Recovered large diameter: 0.882" (22.40mm), recovered small diameter: 0.331" (8.41mm).
3.150" (80.01mm).
Yes, it is flame retardant and has a lip.
Size 53.
