| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9 pcs
|
9 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Features | |
| Large Diameter Recovered | |
| Large Diameter Supplied | |
| Large Recovered Length | |
| Material | |
| Shell Size | |
| Small Diameter Recovered | |
| Small Diameter Supplied | |
| Small Recovered Length | |
| Total Length Recovered | |
| Type |

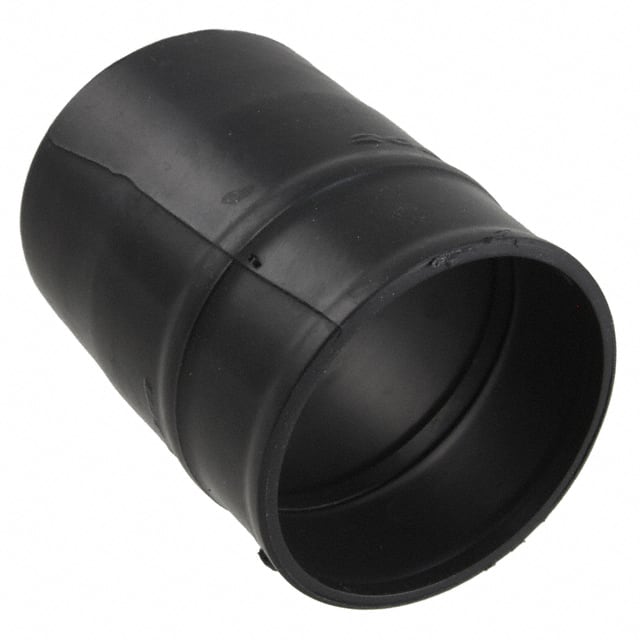

This is a heat shrink boot from TE Connectivity, part number 202K142-3-0. It is designed for shell size 42. The boot is made from semi-rigid polyolefin (PO) and is black in color. It features flame retardant properties and a lip. The boot has a large end supplied diameter of 30.99mm (1.220 inches) and recovers to 18.03mm (0.710 inches). The small end supplied diameter is also 30.99mm (1.220 inches) and recovers to 7.11mm (0.280 inches). The total recovered length is 67.06mm (2.640 inches), with a large recovered length of 35.05mm (1.380 inches) and a small recovered length of 24.99mm (0.984 inches). The boot is RoHS3 compliant, has MSL 1 (unlimited), and is REACH unaffected. It is suitable for cable management applications requiring environmental protection and strain relief.
| Qty | Low | High |
|---|---|---|
| 1+ | $23.85 | $23.85 |
| 10+ | $20.89 | $20.89 |
| 25+ | $19.99 | $19.99 |
| 50+ | $19.34 | $19.34 |
| 100+ | $18.69 | $18.69 |
| 250+ | $17.66 | $17.66 |
| 500+ | $17.15 | $17.15 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Yes, the part is listed as RoHS3 Compliant.
The shell size is 42.
The boot is made from polyolefin (PO), semi-rigid.
The boot is black.
Large and small supplied diameters are both 30.99mm. Large recovered diameter is 18.03mm, small recovered diameter is 7.11mm.
The total recovered length is 67.06mm.
Yes, it is flame retardant and has a lip.
