| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
21 pcs
|
21 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Features | |
| Halogen Free | |
| Large Diameter Recovered | |
| Large Diameter Supplied | |
| Large Recovered Length | |
| Material | |
| Military Grade | |
| Shell Size | |
| Small Diameter Recovered | |
| Small Diameter Supplied | |
| Small Recovered Length | |
| Total Length Recovered | |
| Type |

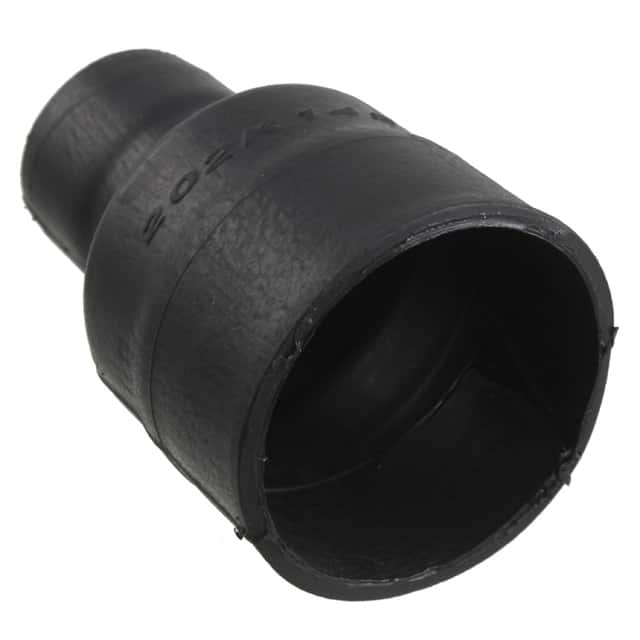

This TE Connectivity heat shrink boot, part number 202K142-100/180-0, is designed for shell size 42 applications. It is molded from a semi-flexible, halogen-free polyolefin material and features an adhesive coating and lip for enhanced sealing and strain relief.
The boot has a large supplied diameter of 1.220" (30.99mm) and recovers to 0.710" (18.03mm). The small supplied diameter is 0.710" (18.03mm) and recovers to 0.280" (7.11mm). Total recovered length is 2.640" (67.06mm), with a large recovered length of 1.380" (35.05mm) and small recovered length of 0.984" (24.99mm).
This component is suitable for cable and wire management applications requiring environmental protection and mechanical support. The adhesive coating provides a moisture-resistant seal after heat shrinking.
Shell size 42.
Polyolefin (PO), semi-flexible, halogen free.
Large supplied 30.99mm, recovered 18.03mm; small supplied 18.03mm, recovered 7.11mm.
Yes, it features an adhesive coating and a lip.
67.06mm (2.640 inches).
