| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Features | |
| Halogen Free | |
| Large Diameter Recovered | |
| Large Diameter Supplied | |
| Large Recovered Length | |
| Material | |
| Shell Size | |
| Small Diameter Recovered | |
| Small Diameter Supplied | |
| Small Recovered Length | |
| Tape & Reel | |
| Total Length Recovered | |
| Type |

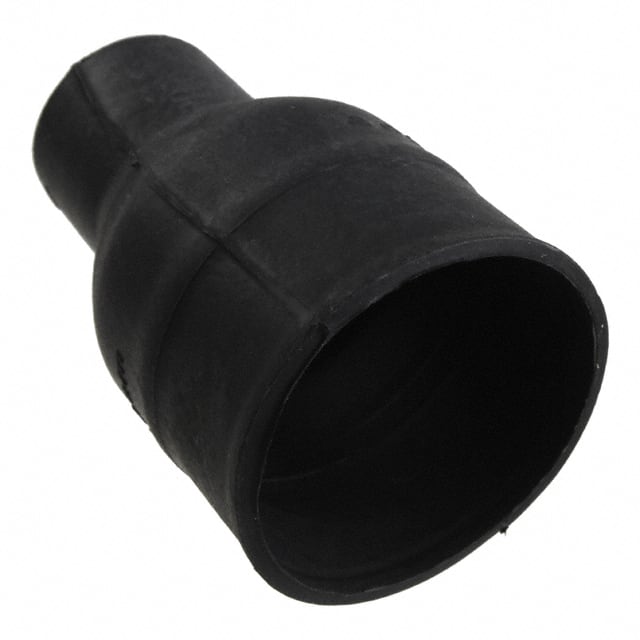

This heat shrink boot from TE Connectivity is designed for shell size 42 connectors. It is fabricated from polyolefin (PO) material that is semi-flexible, halogen free, and colored black. The boot features fluid resistance and a lip for enhanced sealing. It is supplied with a large diameter of 1.220" (30.99mm) and a small diameter of 0.710" (18.03mm). After recovery, the large diameter reduces to 0.710" (18.03mm) and the small diameter to 0.280" (7.11mm). The total recovered length is 2.640" (67.06mm), with the large section recovering to 1.380" (35.05mm) and the small section to 0.984" (24.99mm). The boot is unsuitable for applications requiring high temperature resistance beyond its polyolefin rating. It provides environmental sealing and strain relief for cable bundles entering circular connectors. The semi-flexible nature allows for installation over backshells. No packaging or mounting details are specified in the available data.
| Qty | Low | High |
|---|---|---|
| 1+ | $41.44 | $41.44 |
| 10+ | $36.30 | $36.30 |
| 25+ | $34.73 | $34.73 |
| 50+ | $33.61 | $33.61 |
| 100+ | $32.49 | $32.49 |
| 250+ | $30.70 | $30.70 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Shell size 42.
Polyolefin (PO), semi-flexible, halogen free.
Black.
Large supplied 1.220", recovered 0.710"; small supplied 0.710", recovered 0.280".
Yes, it features fluid resistance and a lip.
RoHS3 Compliant (unverified).
2.640" (67.06mm).
