| Category | |
| Manufacturer Name | |
| Color | |
| Large Diameter Recovered | |
| Large Diameter Supplied | |
| Large Recovered Length | |
| Material | |
| Military Grade | |
| Shell Size | |
| Small Diameter Recovered | |
| Small Diameter Supplied | |
| Small Recovered Length | |
| Total Length Recovered | |
| Type |

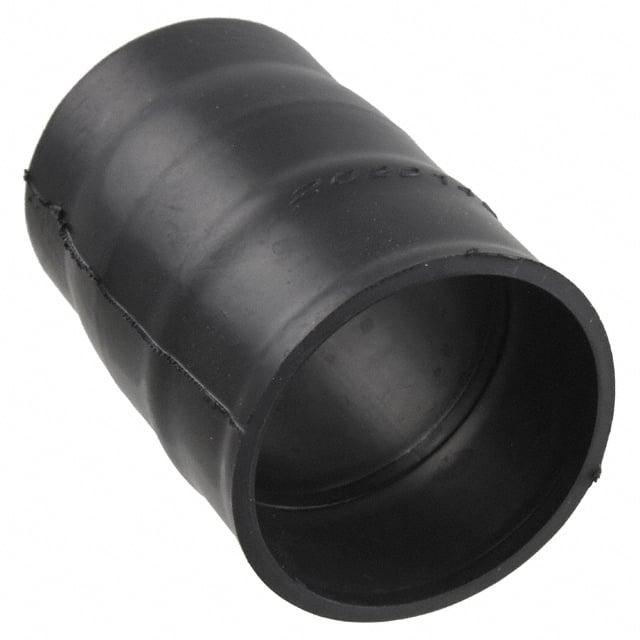

The TE Connectivity 202D142-3-0 is a heat shrink boot designed for cable and wire management applications. It is made from semi-rigid polyolefin (PO) material and comes in a black color. This boot is intended for shell size 42.
Key mechanical specifications include a supplied large diameter of 30.99mm (1.220") which recovers to 17.81mm (0.701"). The supplied small diameter is also 30.99mm (1.220") and recovers to 7.19mm (0.283"). The total recovered length is 66.80mm (2.630"), with a large recovered length of 35.31mm (1.390") and a small recovered length of 24.51mm (0.965").
This boot provides environmental sealing and strain relief for cable terminations and connectors. Its semi-rigid construction offers durability and shape retention after heat application. It is suitable for use in various industrial and commercial cable management systems.
The shell size is 42.
It is made from semi-rigid polyolefin (PO).
Both the large and small supplied diameters are 30.99mm (1.220").
The large recovered diameter is 17.81mm (0.701") and the small recovered diameter is 7.19mm (0.283").
The total recovered length is 66.80mm (2.630").
