| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
45 pcs
|
45 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Features | |
| Large Diameter Recovered | |
| Large Diameter Supplied | |
| Large Recovered Length | |
| Material | |
| Military Grade | |
| Shell Size | |
| Small Diameter Recovered | |
| Small Diameter Supplied | |
| Total Length Recovered | |
| Type |

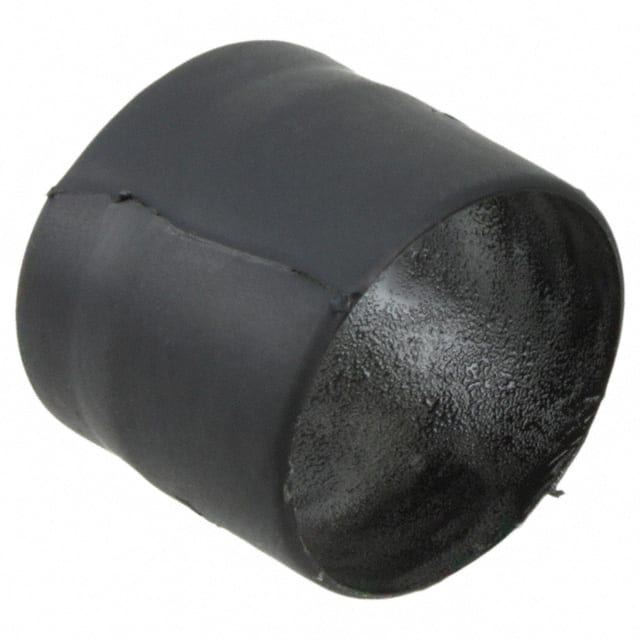

This heat shrink boot from TE Connectivity is designed for shell size 21 applications. It is constructed from semi-rigid polyolefin material in black, featuring an adhesive coating that provides a reliable environmental seal and flame retardant properties for enhanced safety.
The boot has a supplied inner diameter of 24.61mm on both ends. After heat application, the large end recovers to 9.91mm and the small end to 5.31mm. The total recovered length is 38.10mm, with the large section recovering to 21.79mm. These dimensions make it suitable for sealing and strain relief on cables and connectors.
Typical applications include military, aerospace, and industrial environments where protection against moisture, dust, and mechanical stress is required. The adhesive coating ensures a tight bond to cable jackets and connector backshells.
It is made of semi-rigid polyolefin (PO).
The shell size is 21.
Supplied inner diameter is 24.61mm on both ends. After recovery, the large end is 9.91mm and the small end is 5.31mm.
Yes, it features an adhesive coating.
Yes, it is flame retardant.
The total recovered length is 38.10mm.
It is listed as RoHS3 Compliant, but this data is unverified and low confidence.
