| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,730 pcs
|
4730 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish (Mating Area) | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Holddown Material | |
| Holddown Plating | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Packaging Type | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

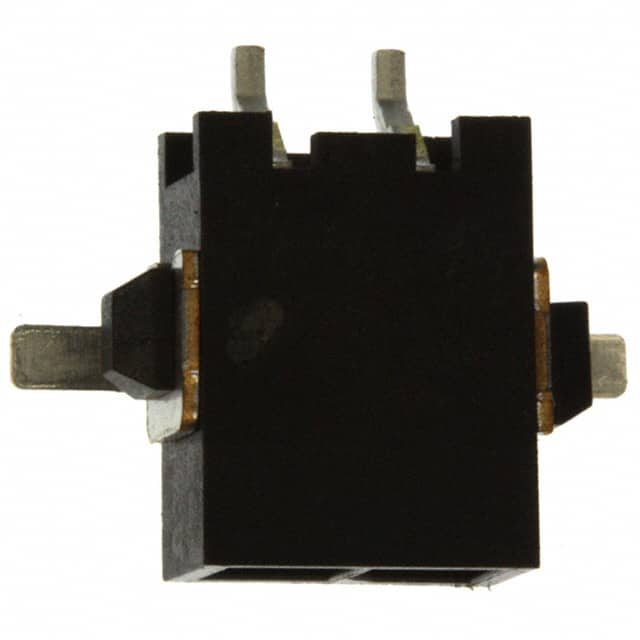

The TE Connectivity 2029030-2 is a 2-position, single row, surface mount right angle header from the Micro MATE-N-LOK family. It features a 3.00mm pitch and a shrouded 4-wall design with a locking ramp for secure mating.
The header has male pin contacts made of brass with a 2.54µm tin plating over 1.27µm nickel on the solder tails. The mating area can have 0.76µm gold or 0.69µm palladium nickel per TE discretion. The housing is black high temperature nylon with UL94 V-0 flammability rating.
Designed for board-to-cable/wire applications, the header includes solder retention features for reliable assembly. It has a voltage rating of 250V, operates from -40°C to 105°C, and is terminated by solder with a holddown made of phosphor bronze.
Typical packaging is tape and reel. Mating connectors include TE part numbers 2008570 or 2029047 (dash varies by position count).
This connector has 2 positions in a single row.
The pitch is 3.00mm.
The voltage rating is 250V.
It is a surface mount, right angle header.
The operating temperature range is -40°C to 105°C.
Yes, it is a shrouded 4-wall header with a locking ramp.
The contacts are made of brass with tin over nickel plating.
