| Category | |
| Manufacturer Name | |
| Accessory Type | |
| For Use With | |
| Material | |
| Mounting Type | |
| Thickness |

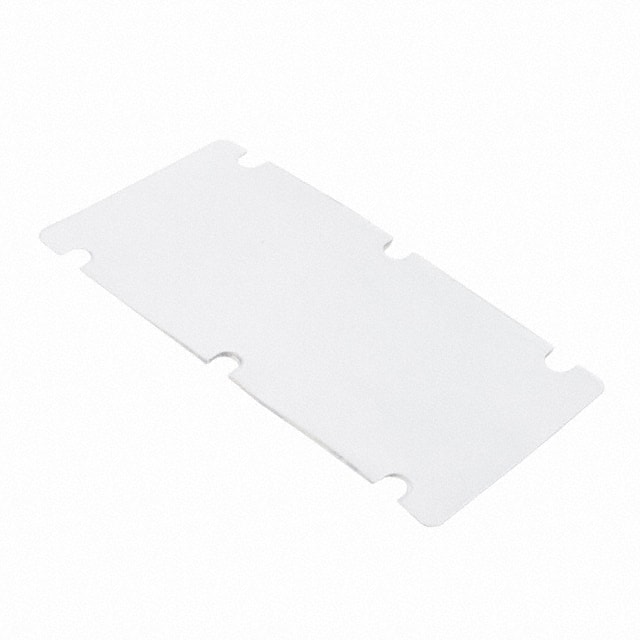

The Vicor 20266, part of the THERMMATE VI-200 series, is a thermal interface pad engineered for effective thermal management in electronic systems. Constructed from Henkel AL-2-45H-232 material, this pad offers a precise thickness of 0.007 ± 0.001 inches, ensuring consistent contact and heat transfer.
This thermal pad incorporates an aluminum alloy 1145-0 layer and an adhesive strip with a thickness of 0.0025 inches and a width of 0.188 inches. It is designed for applications requiring reliable thermal conductivity between components and heat sinks.
The Vicor 20266 is RoHS3 compliant, indicating adherence to environmental standards for hazardous substances. It is suitable for use with VICOR VI-200S-Sized Modules, providing a critical link in the thermal path for power supply components.
Storage conditions recommend a cool, dry location below 40°C (104°F) for indefinite shelf life. The product is supplied in a 10-piece standard package.
The thickness of the Vicor 20266 thermal pad is 0.007 ± 0.001 inches.
The Vicor 20266 thermal pad is made from Henkel AL-2-45H-232.
The Vicor 20266 thermal pad is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) for the Vicor 20266 is 1 Unlimited.
