| Category | |
| Manufacturer Name | |
| Accessory Type | |
| For Use With | |
| Material | |
| Mounting Type | |
| SVHC Present | |
| Thickness |

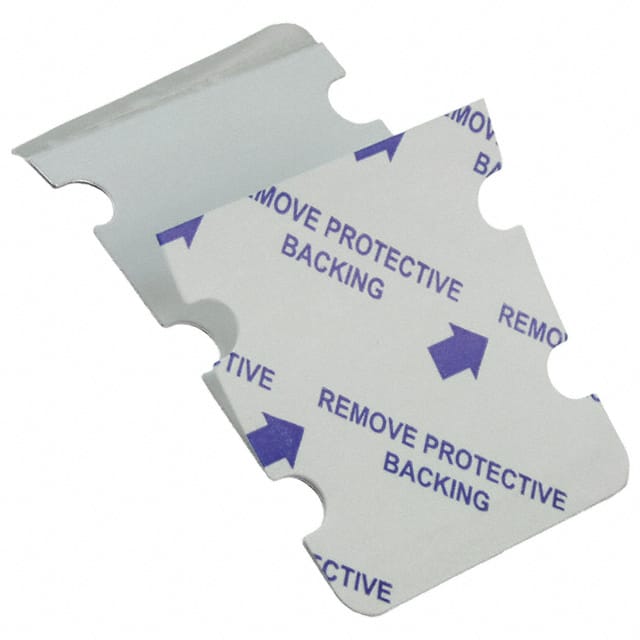

The Vicor 20265 is a THERMATE (MICRO) thermal interface pad, specifically designed for thermal management in power module applications. It features a material composition of HENKEL AL-2-22H-137 and a precise thickness of 0.007 inches with a tolerance of ±0.001 inches.
This thermal pad is intended for use with Vicor Maxi, Mini, and Micro-Sized Modules, facilitating efficient heat dissipation. The datasheet indicates that the product is RoHS3 Compliant, with an MSL rating of 1 Unlimited and REACH Unaffected status.
Proper storage conditions are recommended: a cool, dry location in original packaging at temperatures below 40°C (104°F) for indefinite shelf life. The pad can be pre-applied to baseplates or heat sinks for streamlined final assembly processes, provided the temperature limits are maintained.
Key construction details from the datasheet include a split release liner, an adhesive strip measuring 0.0025 inches thick and 0.125 inches wide, and an aluminum alloy 1145-0 layer that is 0.002 inches thick. It also incorporates phase change thermal compound.
The Vicor 20265 thermal pad is made from HENKEL AL-2-22H-137.
The thickness of the Vicor 20265 thermal pad is 0.007 inches.
The Vicor 20265 thermal pad is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) for the Vicor 20265 thermal pad is 1 Unlimited.
The Vicor 20265 thermal pad is REACH Unaffected.
