| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
46 pcs
|
46 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accessory Type | |
| For Use With | |
| SVHC Present | |
| Storage Temperature | |
| Tape & Reel |

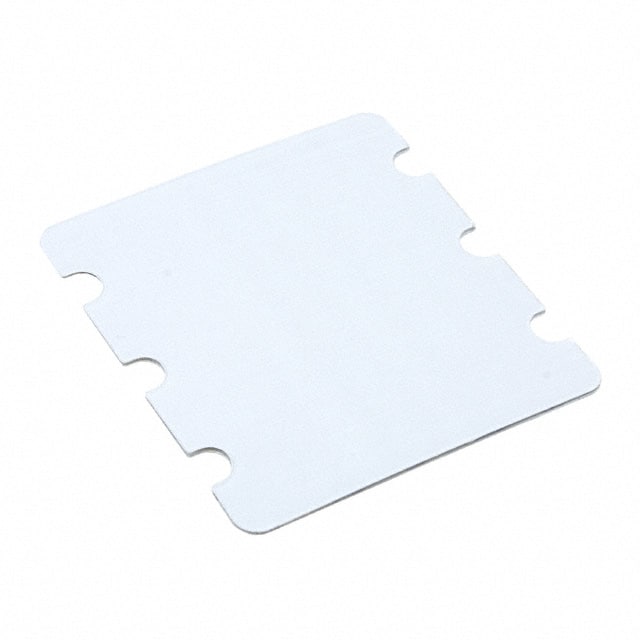

The Vicor 20264 Thermmate Mini is a thermal interface pad specifically designed for use with Vicor mini-sized DC-DC converter modules. With a thickness of 0.007 inches, it provides efficient thermal transfer between the module baseplate and a heatsink. The pad is constructed from Henkel AL-2-22H-212 phase change thermal compound, which improves heat conduction under pressure and temperature.
The pad includes a 0.0025-inch adhesive strip for secure attachment and a 0.002-inch aluminum alloy 1145-0 foil layer for structural integrity. It is supplied in a 10-pack and has an indefinite shelf life when stored at temperatures below 40°C in its original packaging. The product is RoHS compliant per CST-0001, making it suitable for environmentally sensitive applications.
The Thermmate pads can be pre-applied to baseplates or heatsinks before final assembly, provided the storage temperature does not exceed 40°C. This design simplifies thermal management in power supply assemblies and helps maintain consistent performance over time.
Yes, the datasheet states it is RoHS compliant per CST-0001 latest revision.
The pad has a thickness of 0.007 inches (0.178 mm).
It is made from Henkel AL-2-22H-212 phase change thermal compound with an aluminum alloy 1145-0 foil layer.
The shelf life is indefinite when stored below 40°C in the original packaging.
The maximum storage temperature is 40°C (104°F).
It is designed for use with Vicor mini-sized modules.
Yes, it includes a 0.0025-inch thick adhesive strip for bonding.
