| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
18 pcs
|
18 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating |

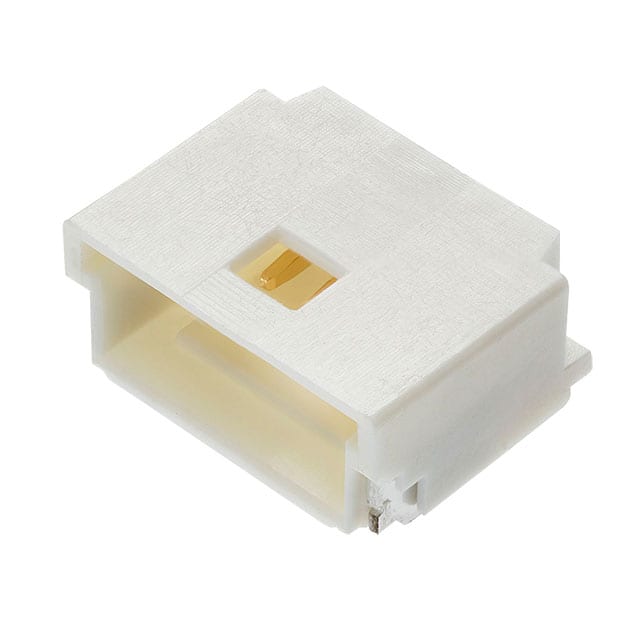

The Molex 2023960207 is a 2-position, single-row, 1.00mm pitch surface mount right angle header designed for board-to-cable/wire applications. It features a shrouded 4-wall design with a latch holder fastening type for secure mating.
The header uses male pin contacts made of phosphor bronze with a gold finish (3.90µin thickness) for reliable electrical performance. The insulator is molded from polyamide (nylon) with a natural color and is rated UL94 V-0 for flammability.
This component is rated for 50V and has an operating temperature range of -40°C to 105°C. It includes a solder retention feature for improved mechanical stability during assembly. The surface mount, right-angle orientation enables space-saving board-to-cable/wire connections.
The pitch is 1.00mm (0.039 inches).
It has 2 positions in a single row, all positions loaded.
The voltage rating is 50V.
Surface mount, right angle orientation.
-40°C to 105°C.
Gold finish with a thickness of 3.90µin (0.099µm).
UL94 V-0.
