| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
960 pcs
|
960 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Termination |

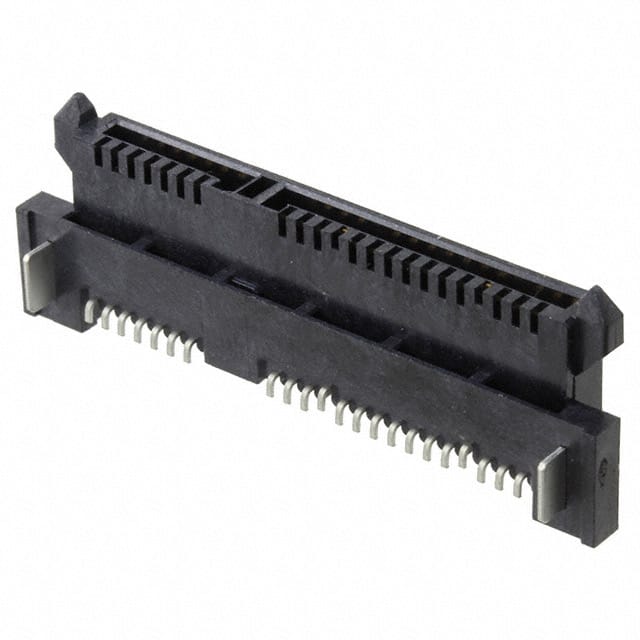

The TE Connectivity 2023246-2 is a SATA receptacle connector designed for pluggable interface applications. It features 22 positions arranged in a surface mount, right angle configuration, making it suitable for compact PCB designs where space is limited. The connector uses solder termination for secure electrical connections and is equipped with a board guide to facilitate accurate alignment during assembly. Contacts are finished with gold (30µin thickness) to ensure reliable signal integrity and corrosion resistance. This connector is RoHS3 compliant and has an MSL rating of 1 (unlimited). It is commonly used in data storage devices, computing peripherals, and other SATA interface applications.
22 positions.
Surface mount, right angle.
Gold with 30µin thickness.
Yes, it includes a board guide.
Solder.
Yes, RoHS3 compliant (unverified).
MSL 1 (Unlimited).
