| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Industrial Grade | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| SVHC Present | |
| Shrouding | |
| Storage Temperature | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating |

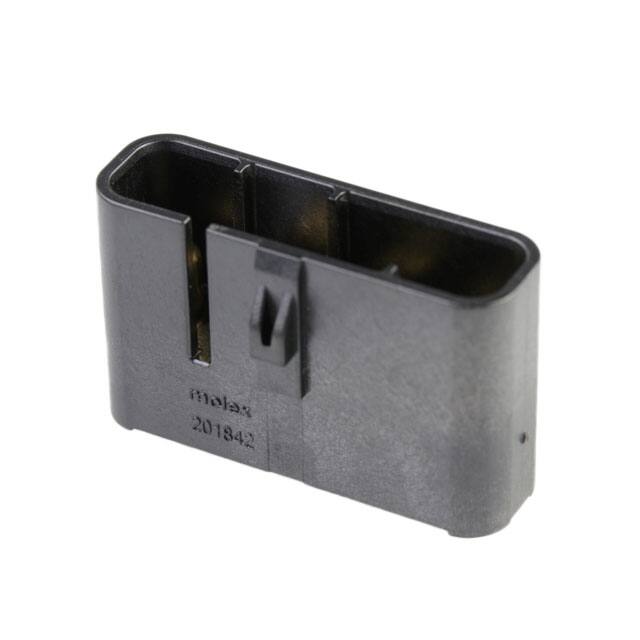

The Molex 2018421040 is a 4-position, single-row header connector designed for board-to-cable/wire applications. It features a 7.40mm pitch and uses through hole mounting with solder termination for secure attachment to a PCB. The connector is shrouded with four walls and includes a latch lock fastening mechanism to ensure reliable mating and prevent accidental disconnection.
Contacts are made of copper alloy with a tin finish (3.90µin thickness) and are circular in shape, with a contact length of 3.35mm. The insulation is black polyetherimide (PEI) with a height of 19.70mm, and it carries a UL94 V-0 flammability rating. The header is rated for up to 1200V and operates over a temperature range of -40°C to 150°C. Current rating is dependent on the wire gauge used.
This connector is suitable for industrial, automotive, and appliance applications where a robust, high-voltage connection is required. The board guide feature aids in alignment during assembly. The material and design provide durability and resistance to harsh environments.
4 positions.
7.40mm.
1200V.
Through hole.
-40°C to 150°C.
UL94 V-0.
Tin.
