| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
60,000 pcs
|
60000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current | |
| Current - Max (I_max) | |
| Halogen Free | |
| Hold Current (I_hold) | |
| Industrial Grade | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Package / Case | |
| Power Dissipation (P_d typ) | |
| Resistance | |
| Resistance - Initial Min (R_min) | |
| Resistance - Post Trip Max (R_1max) | |
| Tape & Reel | |
| Thickness (Max) | |
| Time to Trip | |
| Trip Current (I_trip) | |
| Type | |
| Voltage | |
| Voltage - Max (V_max) | |
| Width |

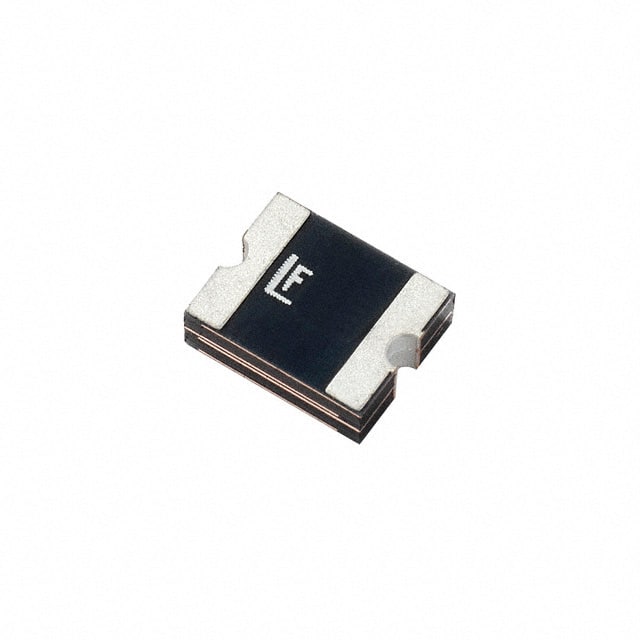

The Littelfuse 2016L100PR is a PolySwitch PTC resettable fuse from the 2016L series. It provides overcurrent protection in low voltage applications up to 15V. The device has a hold current of 1.1 A and a trip current of 2.2 A, with a maximum fault current handling capability of 40 A. The typical trip time is 500 ms at 8 A. The initial resistance is 0.1 Ω minimum, and the post-trip resistance is 0.4 Ω maximum. Power dissipation in the tripped state is 1.4 W. The operating temperature range is -40°C to 85°C. The device is surface mountable and comes in a 2016 (5041 Metric) concave package with dimensions 5.08 mm x 4.07 mm x 0.75 mm. It is RoHS, lead-free, and halogen-free compliant. This resettable fuse is suitable for overcurrent protection in various electronic circuits where resettable protection is desired.
Hold current is 1.1 A, trip current is 2.2 A at 20°C still air.
The maximum voltage is 15 V.
The device can withstand up to 40 A fault current at 15 V.
Typical trip time is 500 ms at 8 A current.
Surface mount 2016 (5041 Metric) concave package, dimensions 5.08 mm x 4.07 mm x 0.75 mm.
Initial minimum resistance is 0.1 Ω, post-trip maximum resistance is 0.4 Ω.
Operating temperature range is -40°C to 85°C.
