Mfr Part #:

2016450141

Name: 2016450141
Brand: Molex
SKU: 2016450141

Mfr Name: Molex

Description:

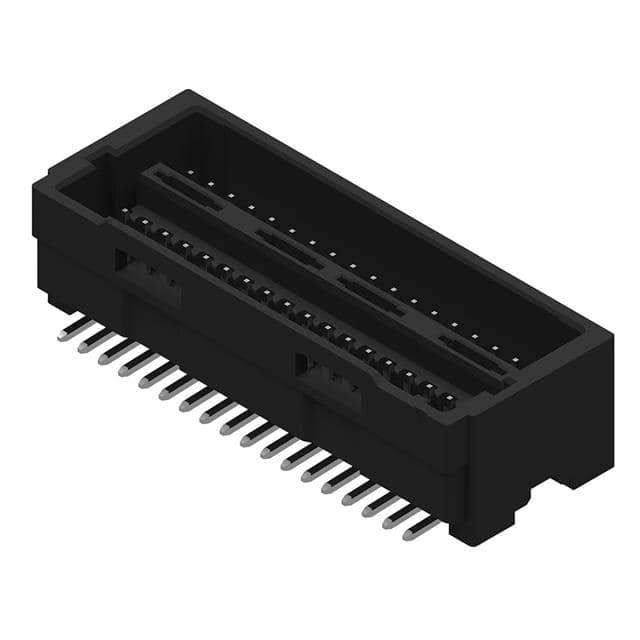

SPOT-ON 1.5 DL PLG ASSY WON BK 1

Stock on Request

2016450141 Description

Short technical summary and product information.

SPOT-ON 1.5 DL PLG ASSY WON BK 1

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Headers, Male Pins
Manufacturer Name	Molex
Connector Type	Header
Contact Finish	Tin
Contact Finish Thickness	39.4碌in (1.00碌m)
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Latch Holder
Features	Pick and Place
Insulation Color	Black
Insulation Height	0.354" (9.00mm)
Insulation Material	Polyamide (PA), Nylon, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	14
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature	-40°C ~ 105°C
Pitch	0.059" (1.50mm)
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	100V
