| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,000 pcs
|
6000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Current Rating (Amps) | |
| Features | |
| Gender | |
| Lead Style | |
| Mating Cycles | |
| Mounting Feature | |
| Mounting Type | |
| Number of Contacts | |
| Number of Ports | |
| Operating Temperature | |
| Shielding | |
| Specifications | |
| Termination | |
| Voltage |

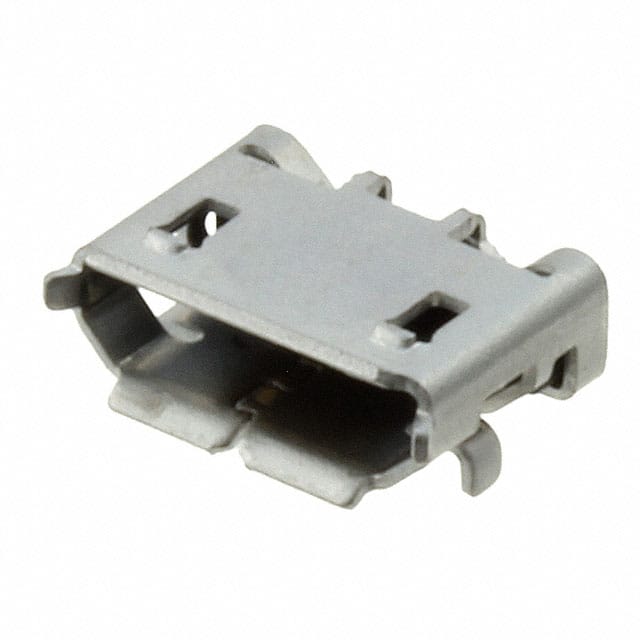

The TE Connectivity 2013499-1 is a USB 2.0 micro B receptacle connector designed for reliable data and power connections in compact electronic devices. It features 5 contacts in a single port, with a horizontal mounting orientation and a combination of surface mount and through-hole termination for robust mechanical attachment.
This connector is rated for currents up to 1.8A and a voltage of 30V, making it suitable for both signal and moderate power delivery applications. It is unshielded and includes solder retention features to enhance durability during assembly and use. The operating temperature range of -30°C to 85°C allows deployment in a variety of environments.
The 2013499-1 is part of TE Connectivity's micro USB connector family, known for high mating cycle durability (10,000 cycles). Its compact footprint and right-angle design make it ideal for space-constrained PCB layouts in consumer electronics, industrial controls, and portable devices.
USB - micro B, USB 2.0
5 contacts
Current rating: 0.5A, 1A, 1.8A; Voltage rating: 30V
Surface Mount, Right Angle; Through Hole, horizontal orientation
-30°C to 85°C
10,000 cycles
