| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,500 pcs
|
1500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Features | |
| Frequency | |
| Housing Color | |
| Impedance | |
| Mounting Type | |
| Number of Ports | |
| Shield Termination | |
| Tape & Reel | |
| Termination Style |

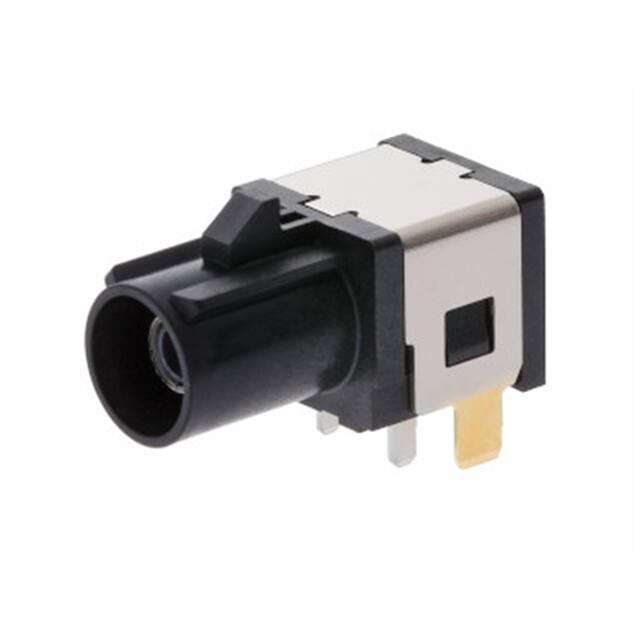

The Molex 2011260001 is a coaxial connector (RF) assembly designed for reliable signal transmission in high-frequency applications.
This connector is an SMB, Fakra style jack with a male pin center contact made of brass. It offers a 50 Ohm impedance and supports frequencies up to 6 GHz, making it suitable for RF systems. The connector features a through hole, right angle mounting configuration with solder termination for both the contact and shield.
The housing is black and uses a locking ramp fastening type for secure mating. This part is designated as Code A, indicating a specific keying variant within the Fakra standard. It is a single-port connector.
The impedance is 50 Ohms.
The maximum frequency rating is 6 GHz.
It uses a through hole, right angle mounting type.
It is an SMB, Fakra jack (male pin) connector.
