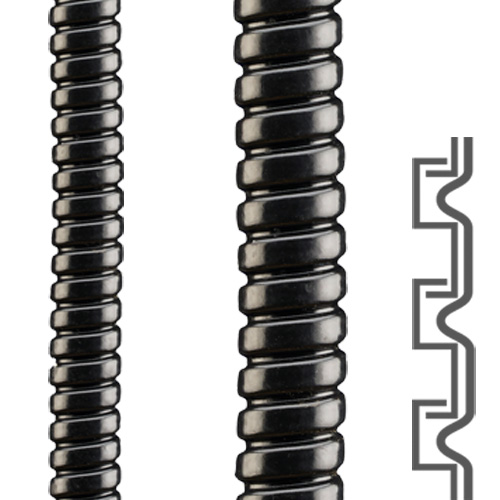

The Flexa SPR-PVC-ESD 2010.902.008 is a highly flexible, small-diameter conduit measuring 8.0 x 11.0 mm. It is constructed with a galvanized steel core and a static-dissipative black PVC jacket, providing mechanical protection and IP68 ingress protection.
This conduit is designed for low-stretch applications, helping to limit axial movement. The static-dissipative jacket has a surface resistivity of less than 1 × 10⁶ ohms, making it suitable for ESD-sensitive routing applications. It offers a high inside diameter of 8.0 mm and an outside diameter of 11.0 mm, providing ample capacity for larger wire groups, sensor leads, cables, and fiber optic bundles.
Applications include electronics manufacturing equipment, measuring and control instruments, packaging machinery, and automation equipment where ESD control, flexible mechanical protection, and IP68 rating are required. The conduit operates within a temperature range of -25°C to 80°C, with an extended temperature rating up to 100°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The outside diameter is 11.0 mm.
The inside diameter is 8.0 mm.
The conduit is rated IP68.
The operating temperature range is -25 °C to 80 °C, with an extended rating of 100 °C.
The conduit is made of galvanized steel with a PVC jacket.
The static bend radius is 35 mm and the dynamic bend radius is 90 mm.
The weight is 0.085 kg per meter.
