| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Plating | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Columns | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Termination | |
| Termination Style |

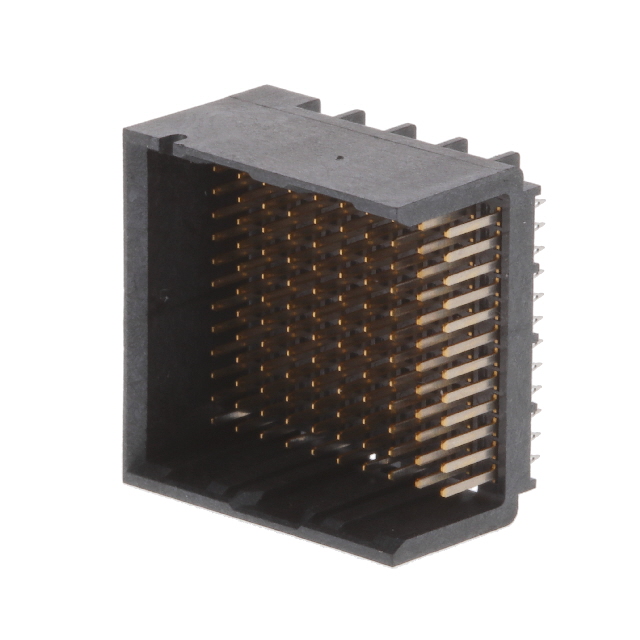

The TE Connectivity 2007821-1 is an Impact 4 pair, 10 column header connector designed for high-speed backplane interconnect systems. It features 120 positions arranged in 12 rows by 10 columns with a 1.91mm pitch. The connector uses through hole mounting with press-fit termination, providing a reliable solderless connection.
The housing is made of LCP (Liquid Crystal Polymer) glass filled material rated UL94V-0, offering high temperature resistance and mechanical strength. The terminals are high performance copper alloy with gold plating in the contact area (30µin minimum) and selective tin on PCB tails, with nickel overall. This combination ensures excellent signal integrity and corrosion resistance.
This unguided header with left end wall is part of the Impact family, optimized for differential pair routing in backplane applications. The 1.91mm pitch allows for high-density PCB layouts while maintaining signal performance. The press-fit termination eliminates the need for soldering, reducing assembly time and improving reliability.
| Qty | Low | High |
|---|---|---|
| 1+ | $16.72 | $16.72 |
| 24+ | $13.36 | $13.36 |
| 48+ | $12.72 | $12.72 |
| 72+ | $12.36 | $12.36 |
| 120+ | $12.27 | $12.27 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 120 positions, all loaded.
The pitch is 1.91mm (0.075 inches).
Mounting is through hole with press-fit termination.
It has 12 rows and 10 columns.
Gold in the contact area (30µin minimum), selective tin on PCB tails, and nickel overall.
LCP (Liquid Crystal Polymer), glass filled, with UL94V-0 flammability rating.
Yes, it is an Impact 4 pair, 10 column header, unguided with left end wall.
