| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,200 pcs
|
4200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Gender | |
| Connector Type | |
| Contact Plating - Mating | |
| Current Rating | |
| Current Rating (Amps) | |
| Features | |
| Gender | |
| Lead Style | |
| Mounting Feature | |
| Mounting Type | |
| Number of Contacts | |
| Number of Ports | |
| Operating Temperature | |
| Operating Temperature Range | |
| Packaging Type | |
| Shielding | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage | |
| Voltage Rating |

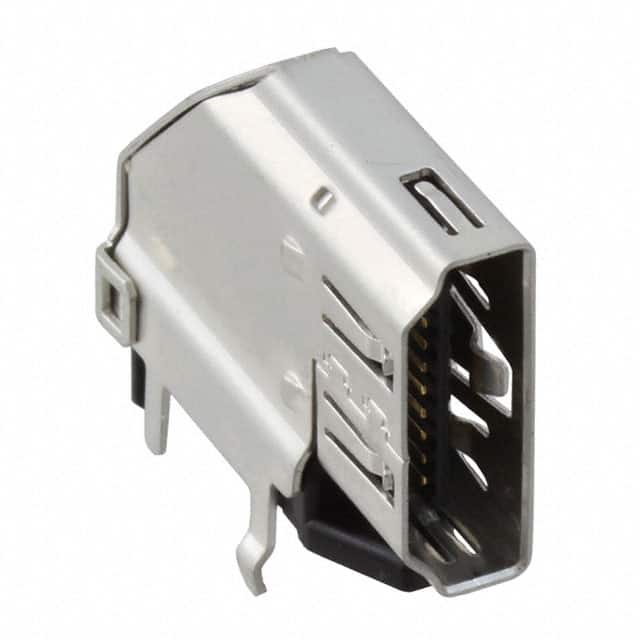

The TE Connectivity 2007435-1 is a 19-position HDMI receptacle connector designed for high-definition multimedia interface applications. It features a through hole, flag mounting style with solder termination, providing a secure connection for PCB assembly. The connector is fully shielded for ESD protection and includes a board lock feature for reliable mechanical retention.
This HDMI connector supports standard, enhanced, or high-definition video plus multi-channel audio on a single cable, compliant with HDMI specification version 1.3a. It is rated for 0.5A current and 40VAC voltage, with an operating temperature range of -20°C to 85°C. The mating contact plating is gold flash over palladium nickel or 12u gold, ensuring reliable signal integrity.
The connector is packaged in a tray and is RoHS3 compliant (unverified). It is suitable for use in digital televisions, set-top boxes, multimedia players, and other consumer electronics requiring a compact HDMI interface.
The current rating is 0.5 A.
The voltage rating is 40 VAC.
It uses through hole, flag mounting.
It has 19 contacts.
Yes, it is shielded.
The operating temperature range is -20°C to 85°C.
