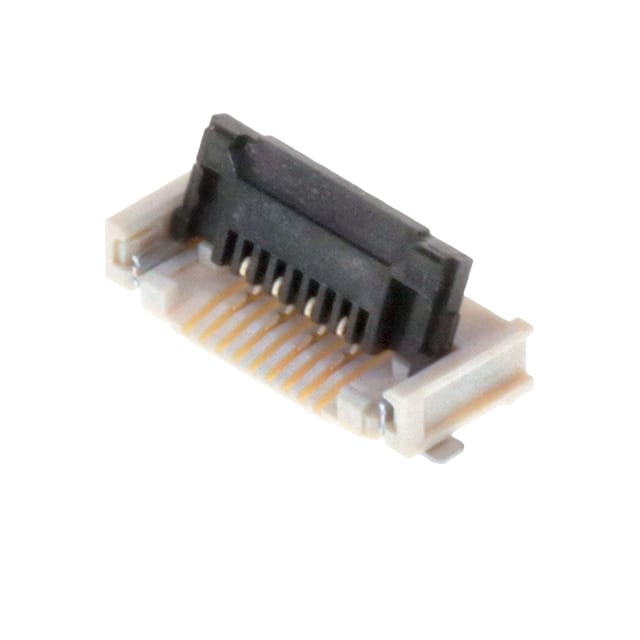

2005280040 Molex 2005280040 is a 4-position, 1mm pitch FFC/FPC connector with surface mount right angle termination and ZIF flip lock. It features gold-plated phosphor bronze contacts and a liquid crystal polymer housing.
Mfr Part #:

2005280040

Available from 1 distributors
Mfr Name: Molex
Molex
Molex 2005280040 is a 4-position, 1mm pitch FFC/FPC connector with surface mount right angle termination and ZIF flip lock. It features gold-plated phosphor bronze contacts and a liquid crystal polymer housing.
✓ Total Stock: 1,000 pcs

2005280040 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
1,000 pcs
On Request
1000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

2005280040 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Material
Cable End Type
Connector
Contact Finish
Contact Material
FFC, FCB Thickness
Features
Flat Flex Type
Height Above Board
Housing Material
Lead Spacing
Lead Style
Locking Feature
Material Flammability Rating
Mounting Type
Number of Positions
Operating Temperature
Pitch
Termination
Termination Style
Voltage Rating
View Similar Products (0)

2005280040 Description

Short technical summary and product information.

The Molex 2005280040 is a 4-position FFC/FPC connector with a 1.00mm pitch, designed for surface mount right angle mounting. It features a ZIF (Zero Insertion Force) flip lock actuator for easy cable insertion and secure retention. The connector uses bottom contacts and accepts FFC/FPC cables with a thickness of 0.30mm.



The contacts are made of phosphor bronze with a gold finish, ensuring reliable electrical performance. The housing is constructed from liquid crystal polymer (LCP) with glass filling, and the actuator is polyamide (PA) nylon with glass filling. The housing material has a UL94 V-0 flammability rating.



This connector includes solder retention features for improved mechanical stability during assembly. It is rated for 125V and operates over a temperature range of -40°C to 105°C. The height above board is 1.90mm, making it suitable for compact designs.

2005280040 Quick Information

Product Type: FFC/FPC Connector Assembly
Canonical Name: Molex 2005280040 FFC/FPC Connector, 4 Positions, 1mm Pitch, Surface Mount, Right Angle, ZIF
Subcategory: FFC, FPC (Flat Flexible) Connector Assemblies

2005280040 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

2005280040 Features

  • 4 positions with 1mm pitch spacing.
  • Surface mount right angle termination.
  • Gold plated phosphor bronze contacts.
  • ZIF flip lock for secure cable retention.
  • Operating temperature range -40°C to 105°C.

2005280040 Applications

  • Used in consumer electronics and appliances.
  • Suitable for automotive interior applications.
  • Ideal for space-constrained PCB designs.
  • Connects flat flexible cables in compact devices.

2005280040 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the Molex 2005280040 have?

It has 4 positions.

What is the pitch of this connector?

The pitch is 1.00mm (0.039 inches).

What is the voltage rating of the 2005280040?

The voltage rating is 125V.

What mounting type does this connector use?

It is surface mount, right angle.

What is the operating temperature range?

The operating temperature range is -40°C to 105°C.

Does this connector have a locking feature?

Yes, it has a flip lock (ZIF) locking feature.

What is the contact finish?

The contact finish is gold.
