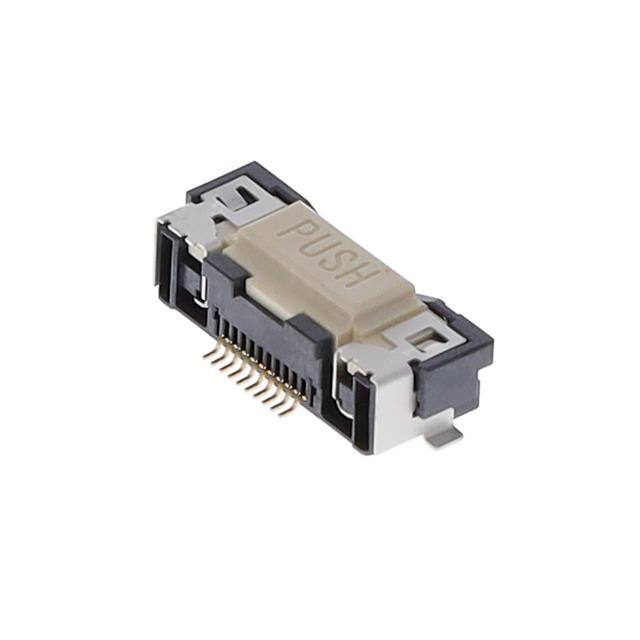

2004850010 Molex 2004850010 is a 10-position, 0.5mm pitch FFC connector with right-angle surface mount termination and gold-plated copper alloy contacts.
Mfr Part #:

2004850010

Available from 1 distributors
Mfr Name: Molex
Molex
Molex 2004850010 is a 10-position, 0.5mm pitch FFC connector with right-angle surface mount termination and gold-plated copper alloy contacts.
✓ Total Stock: 2,500 pcs

2004850010 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
2,500 pcs
On Request
2500 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

2004850010 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Material
Cable End Type
Connector
Contact Finish
Contact Material
FFC, FCB Thickness
Features
Flat Flex Type
Height Above Board
Housing Material
Lead Spacing
Lead Style
Locking Feature
Material Flammability Rating
Mounting Type
Number of Positions
Operating Temperature
Pitch
SVHC Present
Termination
Voltage Rating
View Similar Products (0)

2004850010 Description

Short technical summary and product information.

This Molex 2004850010 is an FFC (Flat Flexible Cable) connector featuring 10 positions with a 0.5mm pitch. The connector is designed for right-angle surface mount mounting and uses solder termination. Contacts are made from copper alloy with a gold finish, housed in a glass-filled Liquid Crystal Polymer (LCP) insulator with a matching LCP actuator.



The connector supports a notched cable end type and employs bottom contacts for signal routing. It includes a solder retention feature and an auto-locking mechanism with push button release for secure cable retention. The operating temperature range is -40°C to 125°C, suitable for harsh environments.



With a voltage rating of 50V and a height above board of 4.46mm, this connector is suited for dense PCB layouts. The material flammability rating is UL94 V-0, ensuring compliance with fire safety standards.

2004850010 Quick Information

Product Type: FFC Connector
Canonical Name: Molex 2004850010 FFC Connector, 10 Positions, 0.5mm Pitch, Right Angle, Surface Mount
Subcategory: FFC, FPC (Flat Flexible) Connector Assemblies

2004850010 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

2004850010 Features

  • 10 positions on 0.5mm pitch.
  • Right-angle surface mount design.
  • Gold-plated copper alloy contacts.
  • Auto lock with push button release.
  • UL94 V-0 glass-filled LCP housing.

2004850010 Applications

  • Used in consumer electronics cable assemblies.
  • Ideal for compact PCB interconnects.
  • Suitable for signal routing in portable devices.
  • Applied in automotive infotainment systems.

2004850010 FAQs

4 frequently asked questions generated from this part’s specifications.
How many positions does the Molex 2004850010 have?

The connector has 10 positions.

What is the pitch of this Molex FFC connector?

The pitch is 0.50mm (0.020 inches).

What is the voltage rating of the 2004850010?

The voltage rating is 50V.

What mounting type does this connector use?

The connector uses surface mount, right-angle mounting.
