| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
567 pcs
|
567 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| ATEX Certificate | |
| Color | |
| Conductor Cross Section Range | |
| Connection Technology | |
| Current | |
| Current at Conductor Cross-Section (max.) | |
| Depth | |
| Ex Rating | |
| Height | |
| IECEx Certificate | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Tool | |
| Rail Type | |
| Rated Current (IEC/EN 60947-7-1) | |
| Rated Impulse Withstand Voltage | |
| Rated Voltage (IEC/EN 60947-7-1) | |
| Strip Length | |
| Terminal | |
| Termination Style | |
| Type | |
| Voltage | |
| Width | |
| Wire Gauge or Range |

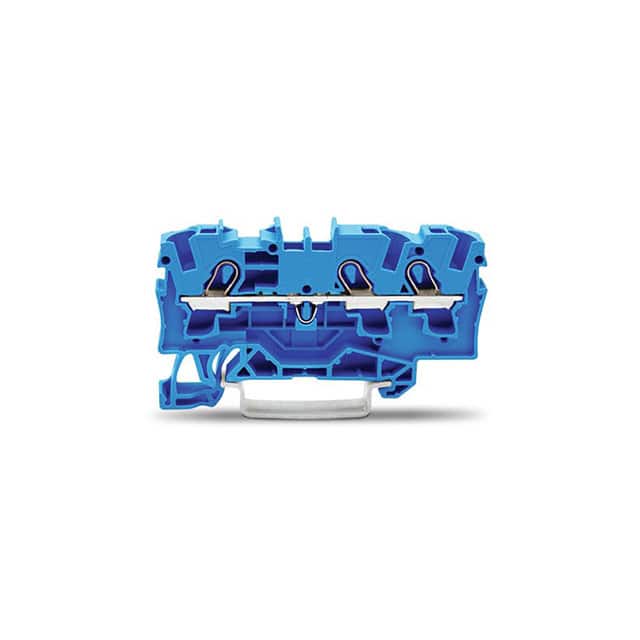

This 3-conductor feed through terminal block (item number 2004-1304) from WAGO is part of the TOPJOB® S series. It is designed for reliable electrical connections in industrial and building installations. The terminal block features Push-in CAGE CLAMP® connection technology, allowing direct insertion of solid and fine-stranded conductors without tools. It accepts conductor cross-sections from 0.5 mm² to 6 mm² and requires a strip length of 11-13 mm.
The terminal block is rated for 600 V UL (Use Group B/C) and 800 V IEC (EN 60947-7-1), with current ratings of 30 A UL and 32 A IEC. It also has a rated impulse withstand voltage of 8 kV. The block is suitable for Ex e II and Ex i applications, with ATEX certificate PTB 05 ATEX 1095 U and IECEx certificate PTB 05.0033U.
Mechanically, the terminal block has a width of 6.2 mm, height of 65.5 mm, and depth of 39.5 mm. It mounts on DIN rails 35 x 15 and 35 x 7.5. The blue color and side and center marking facilitate identification. An operating tool is required for operation.
This feed through terminal block is ideal for through-wiring and potential distribution in control panels, junction boxes, and building wiring systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.32 | $5.32 |
| 10+ | $3.78 | $3.78 |
| 25+ | $3.31 | $3.31 |
| 50+ | $3.02 | $3.02 |
| 100+ | $2.79 | $2.79 |
| 250+ | $2.54 | $2.54 |
| 500+ | $2.40 | $2.40 |
| 1,000+ | $2.29 | $2.29 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3 positions.
30 A UL (Use Group B/C) and 32 A IEC (EN 60947-7-1).
600 V UL (Use Group B/C) and 800 V IEC (EN 60947-7-1, overvoltage category III, pollution degree 3).
DIN Rail, compatible with 35 x 15 and 35 x 7.5 rails.
0.5-6 mm².
Push-in CAGE CLAMP® (spring clamp).
Blue.
