| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,208 pcs
|
1208 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Conductor Cross Section | |
| Current | |
| Current at Maximum Conductor Cross-Section (IEC/EN 60947-7-1) | |
| Depth | |
| Ex e II Suitable | |
| Height | |
| Housing Material | |
| Lead Style | |
| Mounting Type | |
| Number of Clamping Points | |
| Number of Levels | |
| Number of Positions | |
| Overvoltage Category (IEC/EN 60947-7-1) | |
| Pollution Degree (IEC/EN 60947-7-1) | |
| Rated Current (Nominal @ IEC/EN 60947-7-1) | |
| Rated Surge Voltage (IEC/EN 60947-7-1) | |
| Rated Voltage (Nominal @ IEC/EN 60947-7-1) | |
| Strip Length | |
| Terminal | |
| Termination Style | |
| Type | |
| Voltage | |
| Wire Gauge or Range |

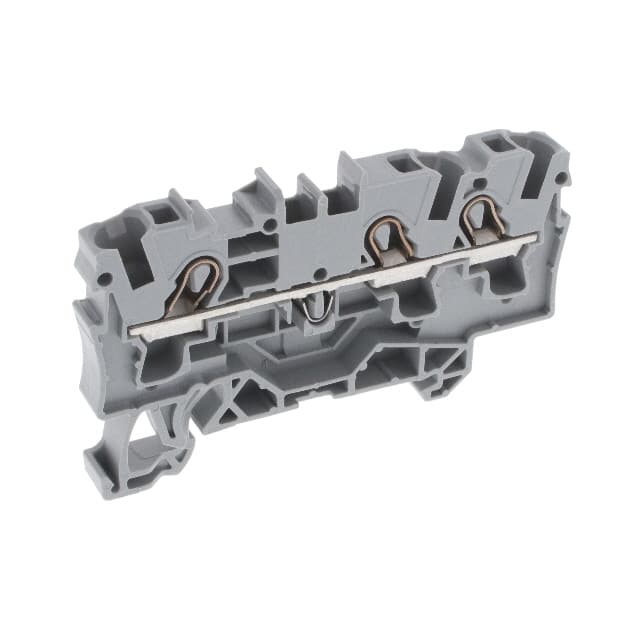

The Wago 2004-1301 is a 3-conductor feed through terminal block from the 2004 Series, designed for DIN rail mounting on 35mm rails. It is rated for 800V and 32A per IEC/EN 60947-7-1, and 600V and 30A per UL 1059 Use Group B/C. The terminal block accepts solid and fine-stranded conductors from 0.5 mm² to 6 mm² with a strip length of 11 mm to 13 mm. Its Push-in CAGE CLAMP connection technology allows tool-less wiring of conductors with ferrules. The gray housing is made of polyamide (PA66) and the dimensions are 6.2 mm width, 65.5 mm height, and 39.5 mm depth. It features one level and three clamping points for a single potential. The terminal block is suitable for Ex e II hazardous locations and has an overvoltage category of III/III/II with pollution degree 3/2/2 per IEC/EN 60947-7-1. Compliance with RoHS, REACH, and MSL 1 is noted but unverified.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.79 | $5.79 |
| 10+ | $4.11 | $4.11 |
| 25+ | $3.61 | $3.61 |
| 50+ | $3.29 | $3.29 |
| 100+ | $3.04 | $3.04 |
| 250+ | $2.78 | $2.78 |
| 500+ | $2.62 | $2.62 |
| 1,000+ | $2.50 | $2.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 3 positions (3 clamping points).
Rated current is 32 A per IEC/EN 60947-7-1 and 30 A per UL 1059 Use Group B/C.
Rated voltage is 800 V per IEC/EN 60947-7-1 and 600 V per UL 1059 Use Group B/C.
It mounts on a 35 mm DIN rail (DIN Rail 35 mm).
It accepts conductors from 0.5 mm² to 6 mm².
The strip length is 11 mm to 13 mm.
Yes, it is suitable for Ex e II applications.
