| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
13 pcs
|
13 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accessory Type | |
| For Use With | |
| Specifications |

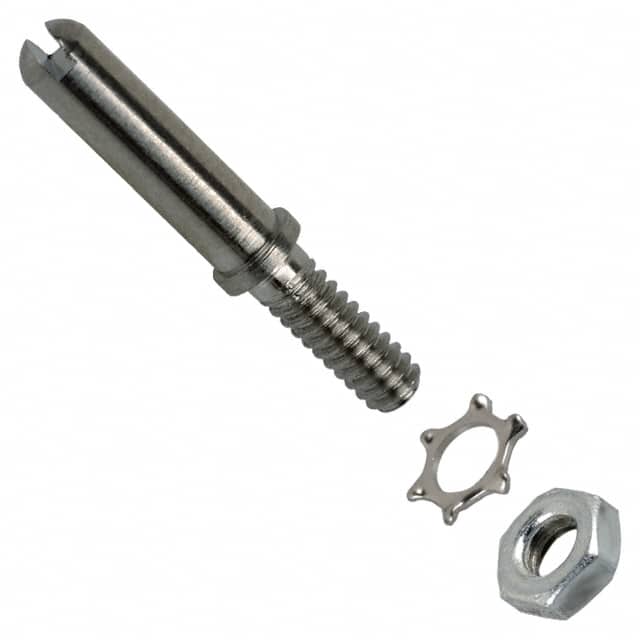

The TE Connectivity 200389-2 is a center guide pin accessory for M Series backplane connectors. It features a 4-40 thread specification, ensuring precise alignment and secure mating of connector halves. This guide pin is designed to facilitate proper connector engagement and reduce insertion stress.
As a mechanical accessory, the guide pin aids in the alignment of backplane connector systems, improving reliability and ease of assembly. The 4-40 thread provides a standard interface for mounting.
The part is listed as RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1 (unlimited), though these compliance claims are unverified. It is intended for use in backplane connector applications where precise alignment is critical.
The guide pin has a 4-40 thread.
It is designed for use with M Series connectors.
It is listed as RoHS3 compliant, but this is unverified.
The MSL is 1 (unlimited), but this is unverified.
