| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
61 pcs
|
61 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Resistance | |
| Contact Type | |
| Current Rating | |
| Dielectric Withstanding Voltage | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mating Cycles | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Storage Temperature | |
| Style | |
| Termination | |
| Voltage Rating |

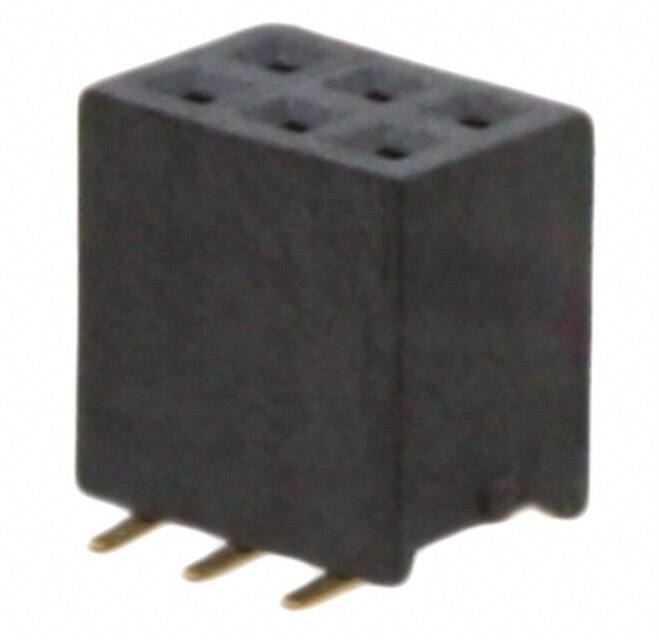

The Amphenol ICC Minitek127 20021321-00006C4LF is a 6-position board-to-board receptacle connector featuring female socket contacts. It has a 1.27mm pitch and row spacing, making it suitable for compact designs. The connector is surface mount with solder termination and a push-pull fastening type. It is rated for 1A current and 125V voltage, with a contact resistance of 30 mΩ max and insulation resistance of 1 x 10^5 MΩ min. The operating temperature range is -40°C to 105°C. The insulator is black UL94 V-0 rated material. The contacts have a tin finish with 10.0µin thickness. The connector includes a pick and place feature for automated assembly. It is designed for 100 mating cycles.
It has 6 positions arranged in 2 rows.
The pitch is 1.27mm (0.050").
The current rating is 1 A per contact.
The voltage rating is 125 V.
Surface mount with solder termination.
-40°C to 105°C.
Tin with 10.0µin (0.25µm) thickness.
