| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,600 pcs
|
4600 pcs | On Request | 1 | On Request | On Request | 20+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

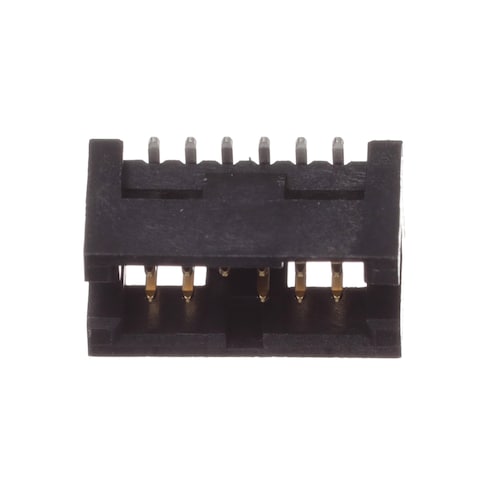

The Amphenol ICC 20021221-00312C4LF is a 12-position (11 loaded) 1.27mm pitch surface mount header connector designed for board-to-board applications. It features a 4-wall shrouded design with a push-pull fastening type, providing secure mating and protection for the male pin contacts.
The connector has two rows of square pins made from copper alloy with a tin contact finish of 10.0µin (0.25µm). The black thermoplastic insulator has a UL94 V-0 flammability rating. It is rated for 1A per contact and 125VAC, with an operating temperature range of -55°C to 125°C.
This header is designed for surface mount soldering and includes a pick-and-place feature for automated assembly. The contact length is 3.05mm and the insulation height is 5.60mm.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.41 | $1.41 |
| 10+ | $1.19 | $1.19 |
| 25+ | $1.15 | $1.15 |
| 100+ | $1.07 | $1.07 |
| 250+ | $0.97 | $0.97 |
| 500+ | $0.93 | $0.93 |
| 1,000+ | $0.84 | $0.84 |
| 2,000+ | $0.75 | $0.75 |
| 5,000+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 1.27mm (0.050").
It has 12 positions, with 11 positions loaded.
The current rating is 1A per contact.
The voltage rating is 125VAC.
The mounting type is surface mount (SMT).
The operating temperature range is -55°C to 125°C.
The contact finish is tin, with a thickness of 10.0µin (0.25µm).
