| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating |

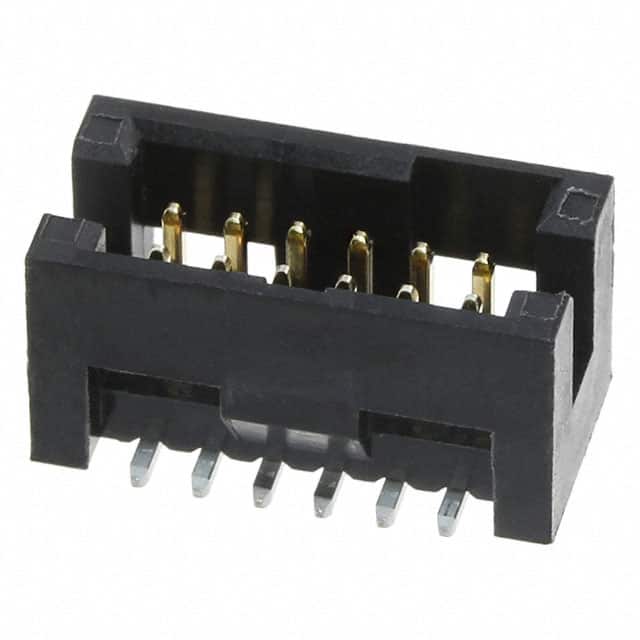

The Amphenol ICC 20021221-00012C4LF is a 12-position board-to-board header from the Minitek127 family. It is a vertical SMT shrouded header with four walls providing polarization and mating guide. The connector uses male square pins with tin contact finish (0.25µm thickness).
Key electrical specifications include a current rating of 1A per contact and a voltage rating of 125VAC. The operating temperature range is -40°C to +85°C.
The insulator is black thermoplastic with a UL94 V-0 flammability rating. Features include pick-and-place compatibility for automated assembly. The contact length is 3.05mm and the insulation height is 5.60mm.
It has 12 positions in 2 rows.
The pitch is 1.27mm (0.050").
1A per contact.
125VAC.
Surface mount (SMT) with solder termination.
