| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,200 pcs
|
1200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Resistance | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Dielectric Withstanding Voltage | |
| Fastening Type | |
| Features | |
| Flammability Rating | |
| Insulation Color | |
| Insulation Material | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mating Cycles (Durability) | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating |

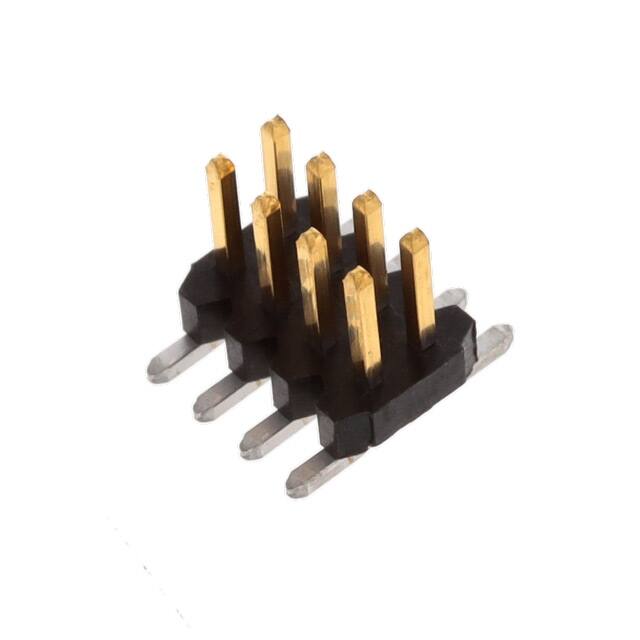

The 20021121-00008C4LF is an 8-position, 2-row vertical surface-mount unshrouded header from the Amphenol ICC Minitek127 series. It features a 1.27mm pitch and 1.27mm row spacing, making it suitable for compact board-to-board connections in space-constrained designs.
Electrical ratings include 1A per contact current and 125VAC voltage. The contacts are made of copper alloy with a tin finish (10.0µin thickness). Contact resistance is 30 mΩ maximum, insulation resistance is 1 x 10^2 MΩ minimum, and dielectric withstanding voltage is 500V.
The header is packaged in a tube and uses surface-mount solder termination. The insulation housing is black thermoplastic rated UL94 V-0 for flammability. It is designed for pick-and-place assembly with a push-pull fastening type and can withstand 100 mating cycles.
This header has 8 positions (2 rows) with a 1.27mm pitch.
The current rating is 1A per contact and the voltage rating is 125VAC.
It is a surface-mount (SMT) header with solder termination.
The operating temperature range is -55°C to 125°C.
This is an unshrouded header.
