| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,511 pcs
|
2511 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

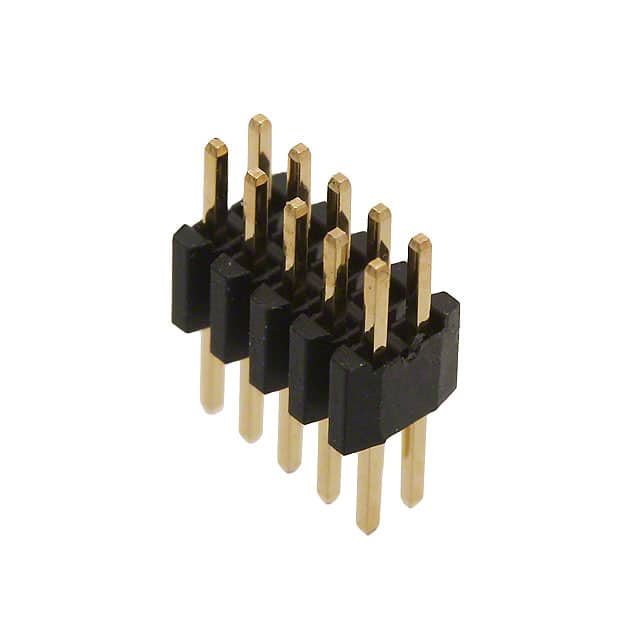

The Amphenol ICC 20021111-00010T4LF is a 10-position, 2-row unshrouded header connector designed for board-to-board applications. It features a 1.27mm pitch and 1.27mm row spacing, enabling compact PCB layouts. The through-hole termination ensures reliable solder connections, and the square copper alloy pins with tin finish provide cost-effective conductivity. The black thermoplastic insulator offers a UL94 V-0 flammability rating and operates over a temperature range of -55°C to 125°C. This connector is rated for 1A per contact at 125VAC, making it suitable for low-power signal and control circuits. The push-pull fastening type allows easy mating and unmating. Overall contact length is 7.86mm, with a mating contact length of 3.05mm. The component is RoHS3 compliant, REACH unaffected, and has an MSL of 1 (unlimited), though these compliance statuses are unverified.
10 positions.
1.27mm (0.050").
1A per contact.
125VAC.
Through hole.
-55°C to 125°C.
Thermoplastic with UL94 V-0 rating.
