| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
42 pcs
|
42 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

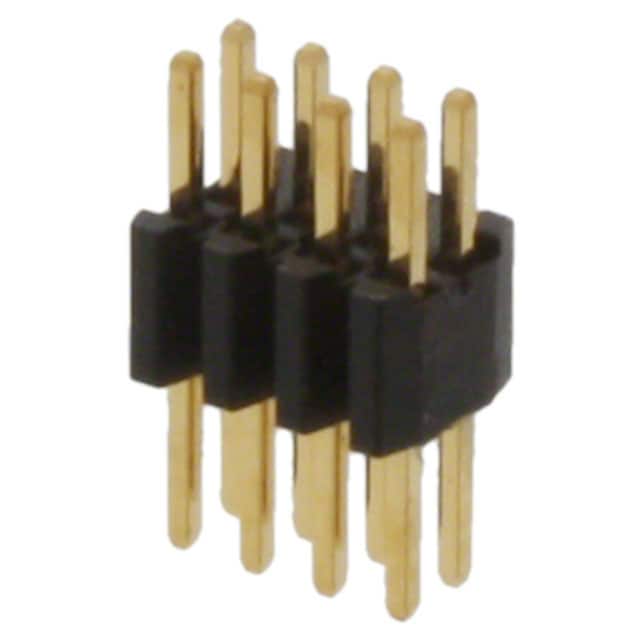

The 20021111-00008T4LF is a 8-position, 2-row rectangular header male pins connector from Amphenol ICC (FCI), designed for through-hole mounting on a printed circuit board.
It features a 1.27mm pitch and unshrouded design with tin-plated square contacts made of copper alloy, ensuring reliable electrical connections in board-to-board configurations. The header is rated for 1A per contact and 125VAC, with an operating temperature range of -55°C to 125°C.
The insulator is molded from black thermoplastic with a UL94 V-0 flammability rating, providing robust mechanical support. The overall contact length is 7.86mm. This component is ideal for compact, space-constrained designs requiring a low-profile interconnect solution.
The connector has 8 positions arranged in 2 rows.
The pitch is 1.27mm (0.050 inch).
The current rating is 1A per contact.
The voltage rating is 125VAC.
It uses through-hole mounting with solder termination.
