| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
96 pcs
|
96 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Current | |
| Current Rating | |
| Depth | |
| Height | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Terminal | |
| Termination Style | |
| Type | |
| Voltage | |
| Voltage Rating | |
| Width | |
| Wire Gauge or Range |

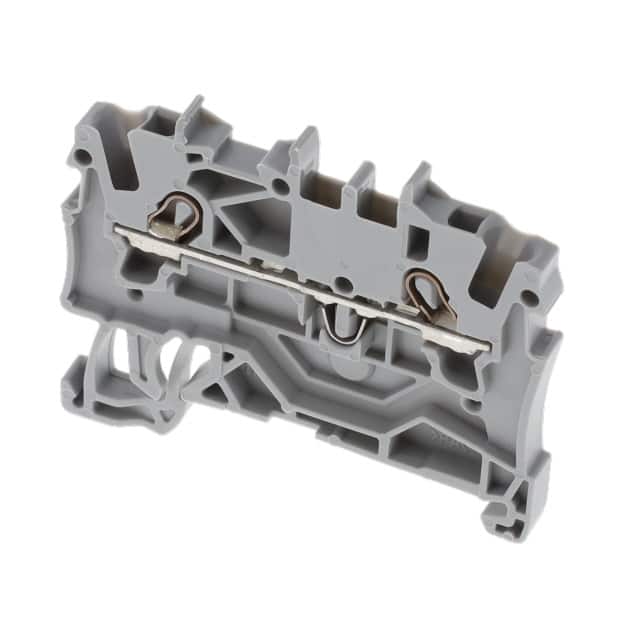

The Wago 2001-1201 is a 2-conductor feed through terminal block from the 2001 Series. It is designed for DIN rail mounting and utilizes Push-in CAGE CLAMP® connection technology for fast, tool-free wiring of solid and fine-stranded conductors with ferrules.
This terminal block is rated for 15 A (UL) and 17.5 A (IEC/EN) with a voltage rating of 600 V (UL/CSA) and 800 V (IEC/EN). It accepts conductor cross sections from 0.25 mm² to 2.5 mm² and requires a strip length of 9-11 mm. The block is gray and measures 4.2 mm wide, 48.5 mm high, and 39.5 mm deep.
It is suitable for Ex e II applications with ATEX and IECEx certifications. The rated impulse withstand voltage is 8 kV per IEC/EN 60947-7-1. The terminal block mounts on DIN rail 35 x 15 and 35 x 7.5.
The UL rated current is 15 A, the IEC/EN rated current is 17.5 A, and the current at maximum conductor cross section is 24 A per IEC/EN 60947-7-1.
The UL/CSA rated voltage is 600 V, and the IEC/EN rated voltage is 800 V.
It mounts on DIN rail 35 x 15 and 35 x 7.5.
It accepts conductor cross sections from 0.25 mm² to 2.5 mm² with a strip length of 9-11 mm.
Yes, it is suitable for Ex e II applications with ATEX (PTB 05 ATEX 1094 U) and IECEx (PTB 05.0034U) certifications.
The terminal width is 4.2 mm.
