| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,232 pcs
|
1232 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Inductance | |
| Mounting Type | |
| Operating Temperature | |
| Prop 65 | |
| Shielding | |
| Tape & Reel | |
| Tolerance | |
| Type | |
| inductance (Nominal @ @ Irated) |

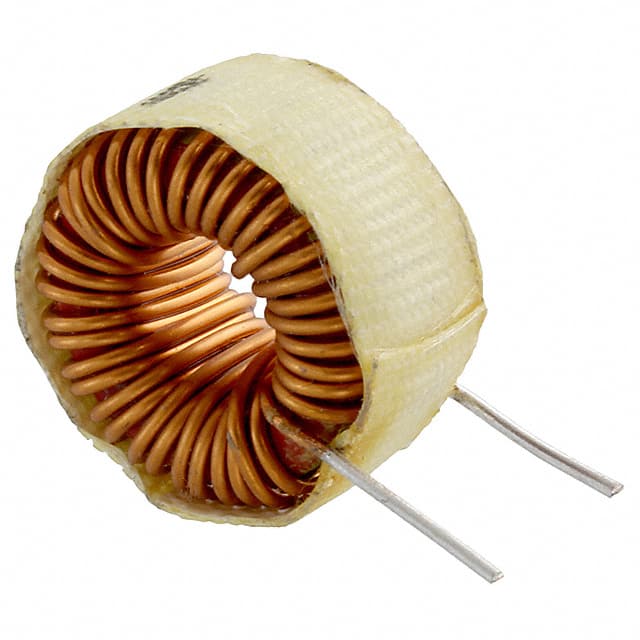

The Bourns 2000-1R2-V-RC is a toroidal fixed inductor from the 2000 series. It offers an inductance of 1.2 µH with ±20% tolerance, measured at 1 kHz. The component is rated for a continuous current of 20.2 A, causing a 40°C temperature rise. At rated current, the inductance drops to 0.86 µH. The maximum DC resistance is 2.2 mΩ.
This unshielded inductor is designed for through-hole mounting in a radial, vertical open package. It operates over a temperature range of -55°C to +105°C. The toroidal core design minimizes radiation and core loss, making it suitable for high-current, low-voltage applications.
Typical applications include output chokes in power converters, high-speed computers, and video game machines. The component is RoHS compliant and carries a California Proposition 65 warning for cancer and reproductive harm.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.04 | $2.04 |
| 10+ | $1.68 | $1.68 |
| 25+ | $1.47 | $1.47 |
| 100+ | $1.38 | $1.38 |
| 250+ | $1.27 | $1.27 |
| 360+ | $1.16 | $1.16 |
| 1,080+ | $1.15 | $1.15 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 1.2 µH ±20% at 1 kHz.
The rated current is 20.2 A, based on a 40°C temperature rise.
The maximum DC resistance is 2.2 mΩ per the datasheet, though product data lists 1.7 mΩ. Verify with manufacturer.
-55°C to +105°C.
No, it is unshielded.
Through hole, radial vertical open package.
Yes, it is RoHS3 compliant per the datasheet.
